Reduce the risk of thermal shock while reworking.It is the best solution for rework on small PCBAs, such as the once commonly used in smartphones. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in and two TC connections.Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.The Preheater can be operated easily and conveniently via the intuitive menu navigation. PHN-SA Nano PBC Support is perfectly adapted to any type of PCB by means of its many adjustable components and its 3 adjustable clearance positions 28, 50 or 70 mm / 1.1, 2 or 2.8 in.By means of JBC Suite Software, the Preheater can be synchronized with other JBC Hot Air, Soldering Stations as well as Fume Extractor equipment in order for them to work jointly and to perform your rework process optimally.


Qualities and Characteristics

  • 3 power modes:Power,Temperature and Profile mode
  • Power Mode allows working at a fixed power level with the option of using protection thermocouple.
  • Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
  • Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.
  • Two thermocouple can be connected in any of the three work modes.

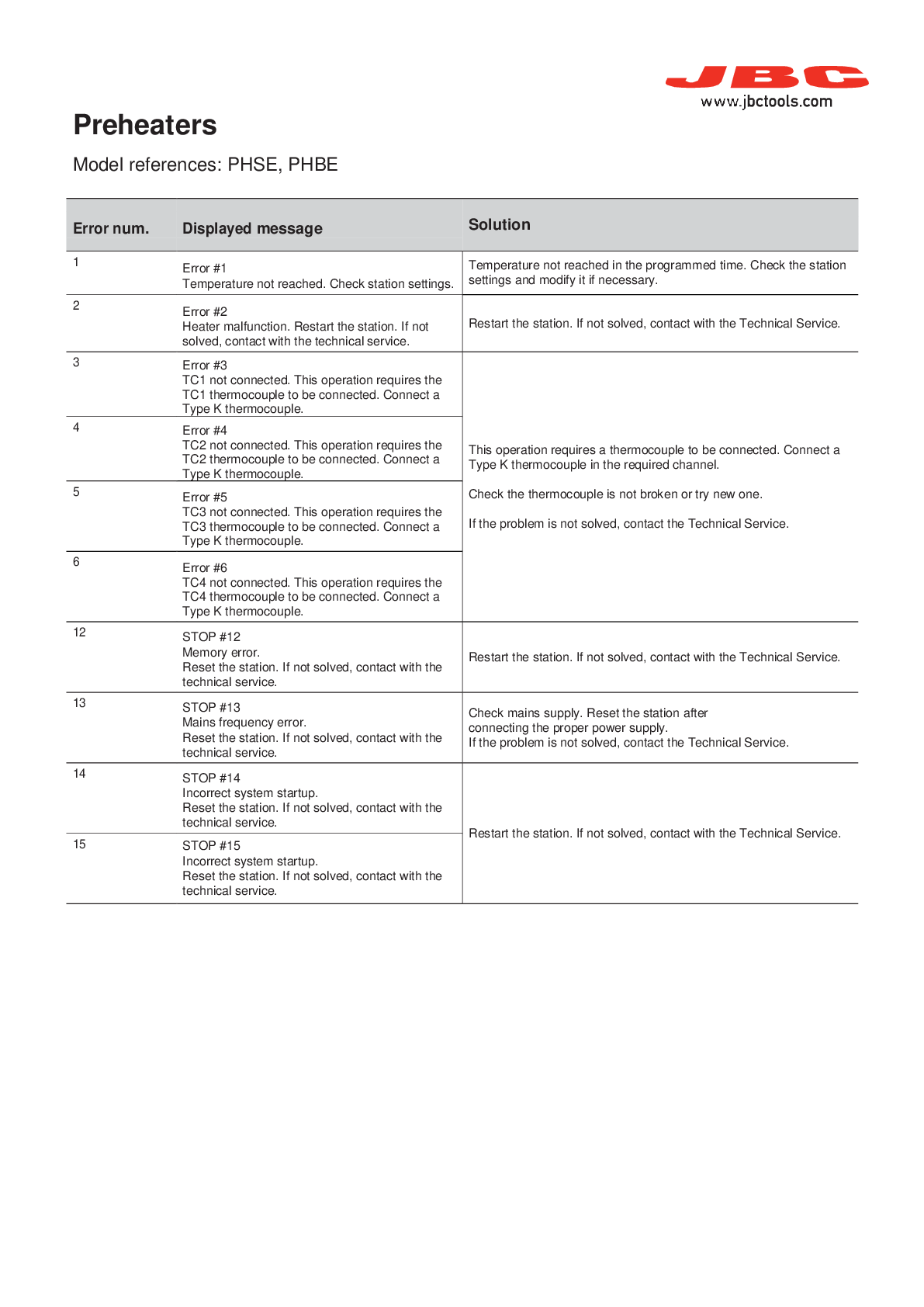

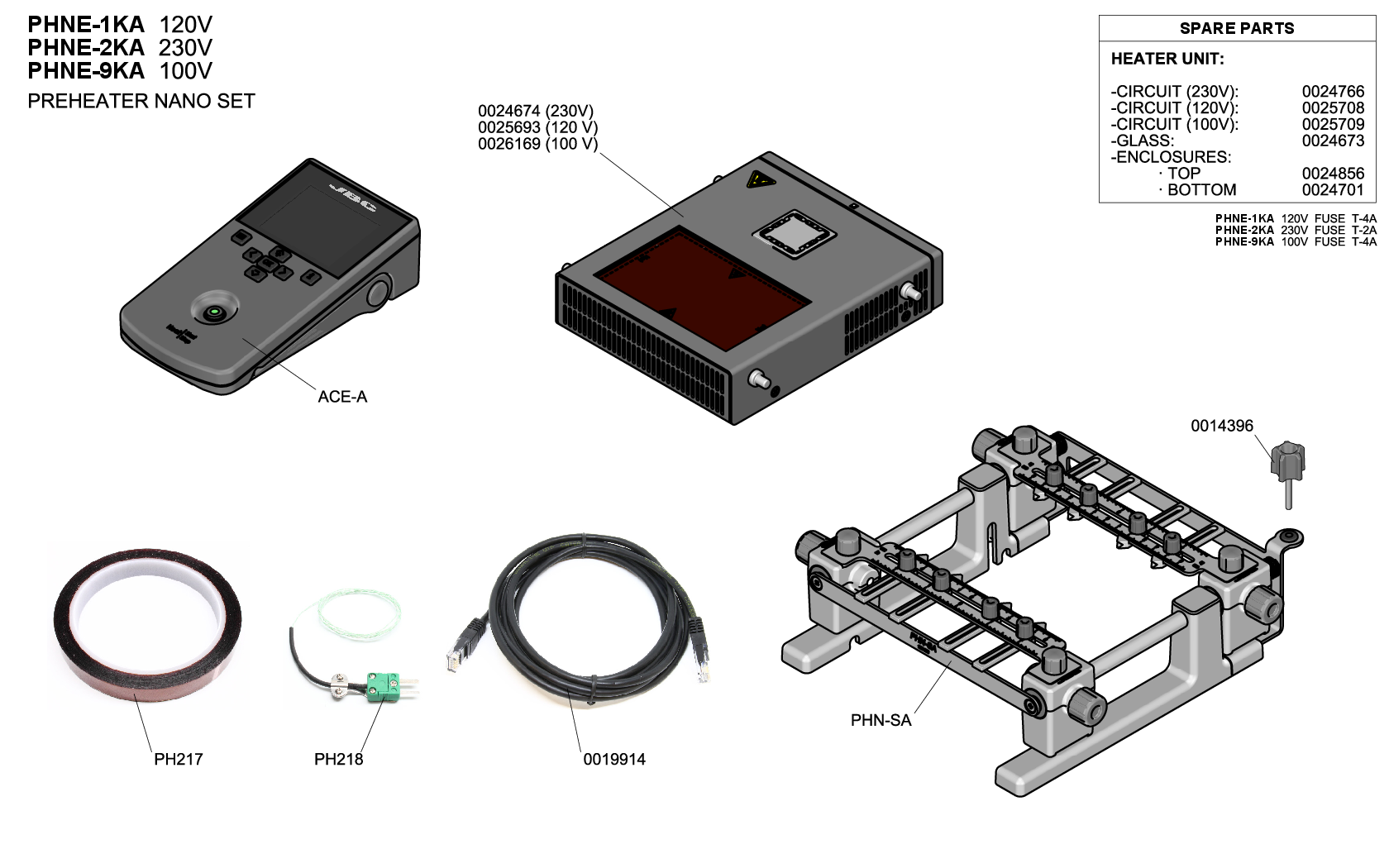

Product Contains

  • 1 Heater unit
  • 1 Console
  • 1 PHN-SA Nano PCB Support
  • 2 PH218 Thermocouple Type K
  • 1 PH217 Kapton tape

Technical Attributes

Maximum Power 300W
Maximum Work Time 600 min or indefinite

Selectable Parameters

Heating Area 108 x 70 mm / 4.25 x 2.75 in
Temperature Range 50 to 250 ºC / 120 to 482 ºF
Temperature Measurement Thermocouple type K
User Profiles 20 (up to 6 steps for each)

ESD/EOS

ESD Safe

Connectivity

USB-B Software PC (rear)
USB-A Firmware update (Graphics management) (front)
Robot RS-232 remote control
Aux Console connection
Pedal Connect a pedal (ref.P-005) to control the heater.
Write Your Own Review

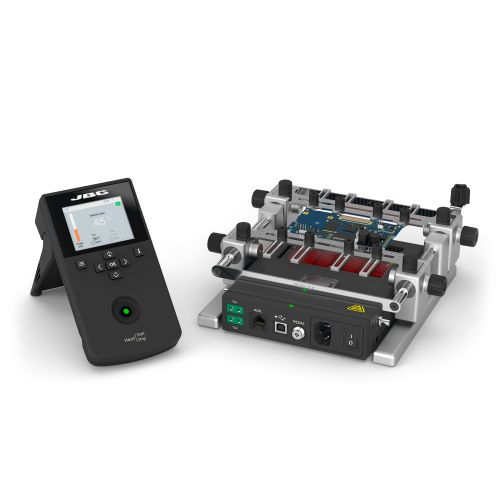

You're reviewing:JBC PHNE-K Nano Preheater Set
