The PHBE is the best solution for preheating big multilayer PCBAs, and it works with convection technology.It allows gradual heating up, reducing risk of thermal shock in the substrate and components, and to work with lower temperature on components connected to ground planes.It features, along with the power and temperature mode, a powerful functionality of profiles to perform rework tasks. Temperature is sensed with an external thermocouple and the heat is autoregulated by the console, capable of storing up to 25 different profiles.Connecting up to 4 external TCs provides a high-precise close-loop control of the component/PCBA during the heating process. It can also be used to protect a component or a specific area of the PCBA.It has 2 independent work zones that define a heating area of 180x277 or 360x277 mm (7.1x10.9 or 14.2x10.9 in).


Qualities and Characteristics

  • Best solution for preheating big multilayer PCBAs
  • Convection technology
  • Gradual heating up
  • Power and temperature mode
  • External thermocouple
  • Capable of storing up to 25 different profiles
  • 4 external TCs provides a high-precise close-loop control
  • 2 independent work zones

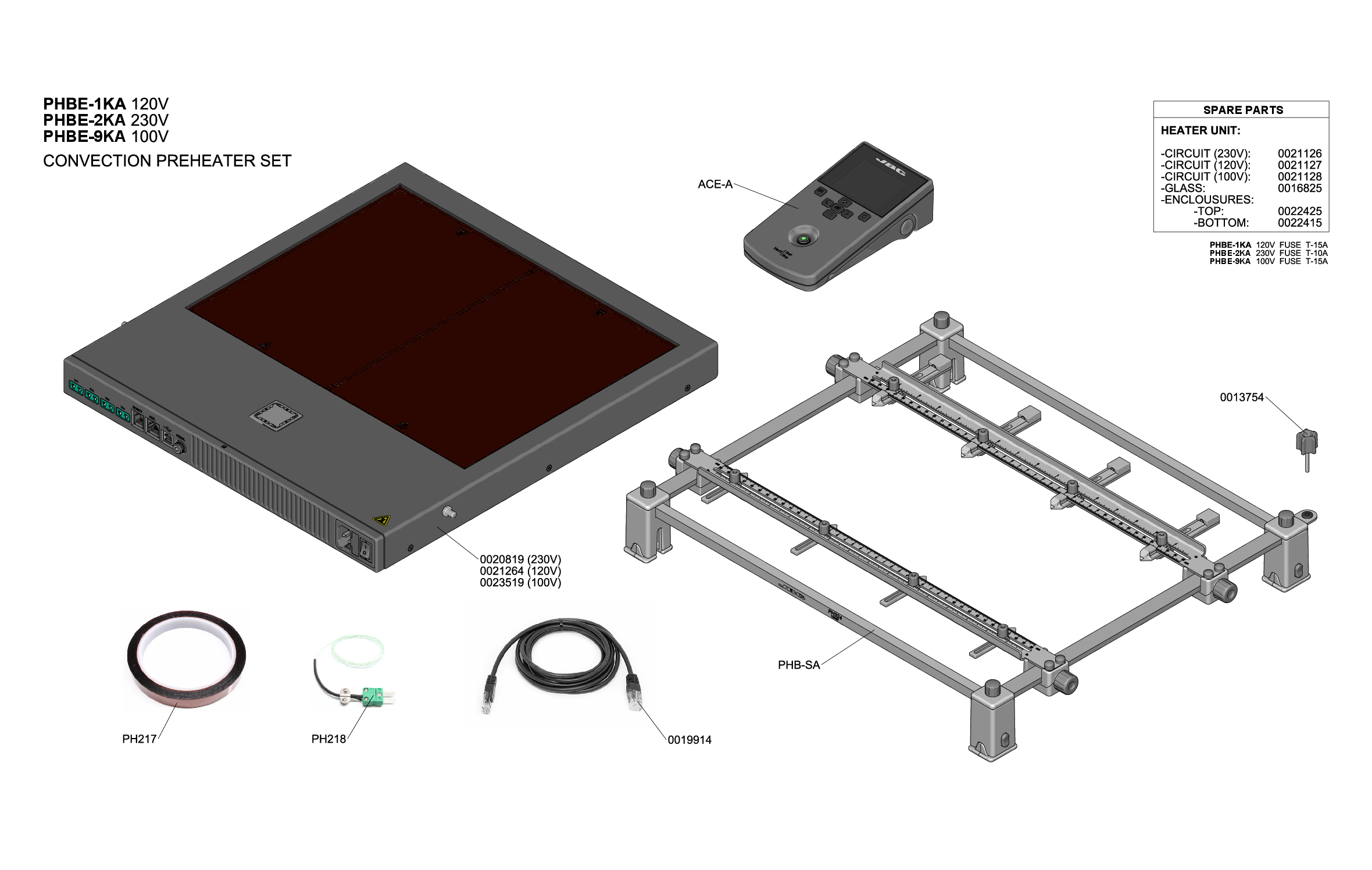

Product Contains

  • 1 Console
  • 1 PHB-SA Convection Preheater Support
  • 1 PH218 Thermocouple Type K
  • 1 PH217 Kapton tape

Technical Attributes

Maximum Power 1800W

Selectable Parameters

Heating Area 180 x 277 mm / 7.1 x 10.9 in - 1 zone 360 x 277 mm / 14.2 x 10.9 in -2 zones
Temperature Range 50 to 250 ºC / 120 to 482 ºF
Temperature Measurement Thermocouple type K

ESD/EOS

ESD Safe

Connectivity

USB-B Software PC (rear)
USB-A Firmware update (Graphics management) (front)
Robot RS-232 remote control
Aux Console connection
Pedal Connect a pedal (ref.P-005) to control the heater.
Write Your Own Review
You're reviewing:JBC PHBE-K LARGE PRE HEATER SET
Your Rating
£3,202.00 (£3,842.40 inc VAT)
JBC PHBE-K (A.K.A PHB) LARGE PRE HEATER SET
