Complete system for preheating multilayer PCBs and ideal for repetitive soldering jobs.It comes with a close loop thermocouple controlled Infrared Preheater Unit and with a PCB Support.The Infrared Preheater PHSE is used as a secondary heat source to reduce the amount of heat supplied by the main soldering tool, reducing thermal shock to components and PCBs.The PCB Support PHS-S is perfectly adapted to any type of PCBs by means of its many adjustable parts and its 3 adjustable clearance positions 28, 50 or 70 mm (1.1, 2 or 2.8 in).


Qualities and Characteristics

  • Ideal for repetitive soldering jobs
  • Close loop thermocouple
  • Infrared Preheater PHSE is used as a secondary heat source
  • Many adjustable parts
  • 3 adjustable clearance positions

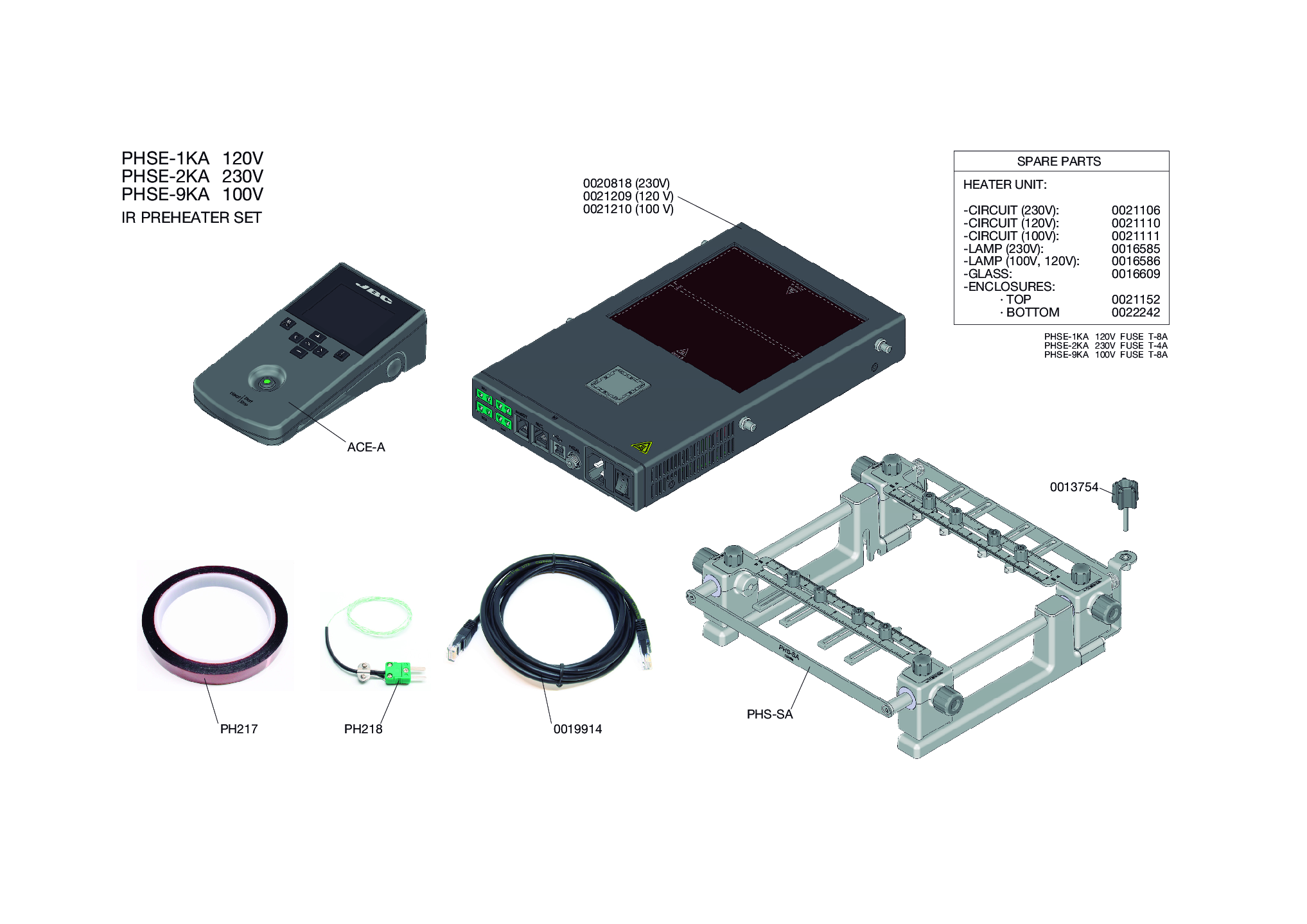

Product Contains

  • 1 PHSE IR Preheater
  • 1 PHS-SA IR Preheater Support
  • 1 PH218 Thermocouple Type K
  • 1 PH217 Kapton tape

Technical Attributes

Maximum Power 500W
Maximum Work Time 600 min or indefinite

Selectable Parameters

Heating Area 65 x 135 mm / 2.6 x 5.3 in - 1 zone 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Temperature Range 50 to 250 ºC / 120 to 482 ºF
Temperature Measurement Thermocouple type K
User Profiles 20 (up to 6 steps for each)
