LOCTITE 315 OUTPUT KIT X 25ML
LOCTITE® 315 is a blue, 1-part, self-shimming, thermally conductive, highly viscous, modified acrylic adhesive paste for bonding electrical components to heat sinks with an insulating gap. It provides excellent heat dissipation while the controlled strength permits field and service repair. It produces a consistent 5 - 6 mm gap between the component and heat sink.
Qualities and Characteristics
- High thermal conductivity
- Self-shimming, produces a consistent 0.15mm gap
- Controlled strength for serviceability
- Eliminates the need for mechanical fasteners
Product Contains
- 1 LOCTITE 315
- 1 LOCTITE 7386
Technical Attributes
| Viscosity Temperature | 77 °F |
Physical Attributes
| Cure Type | Room Temperature Cure |
| Viscosity | 600000 mPa.s (cP) Brookfield |
| Colour | Blue |
| Technology | Acrylic |
Practical Attributes
| Key Characteristics | Conductivity: Thermally Conductive, Shimming: Self-Shimming |
| Application | Bonding |
Write Your Own Review

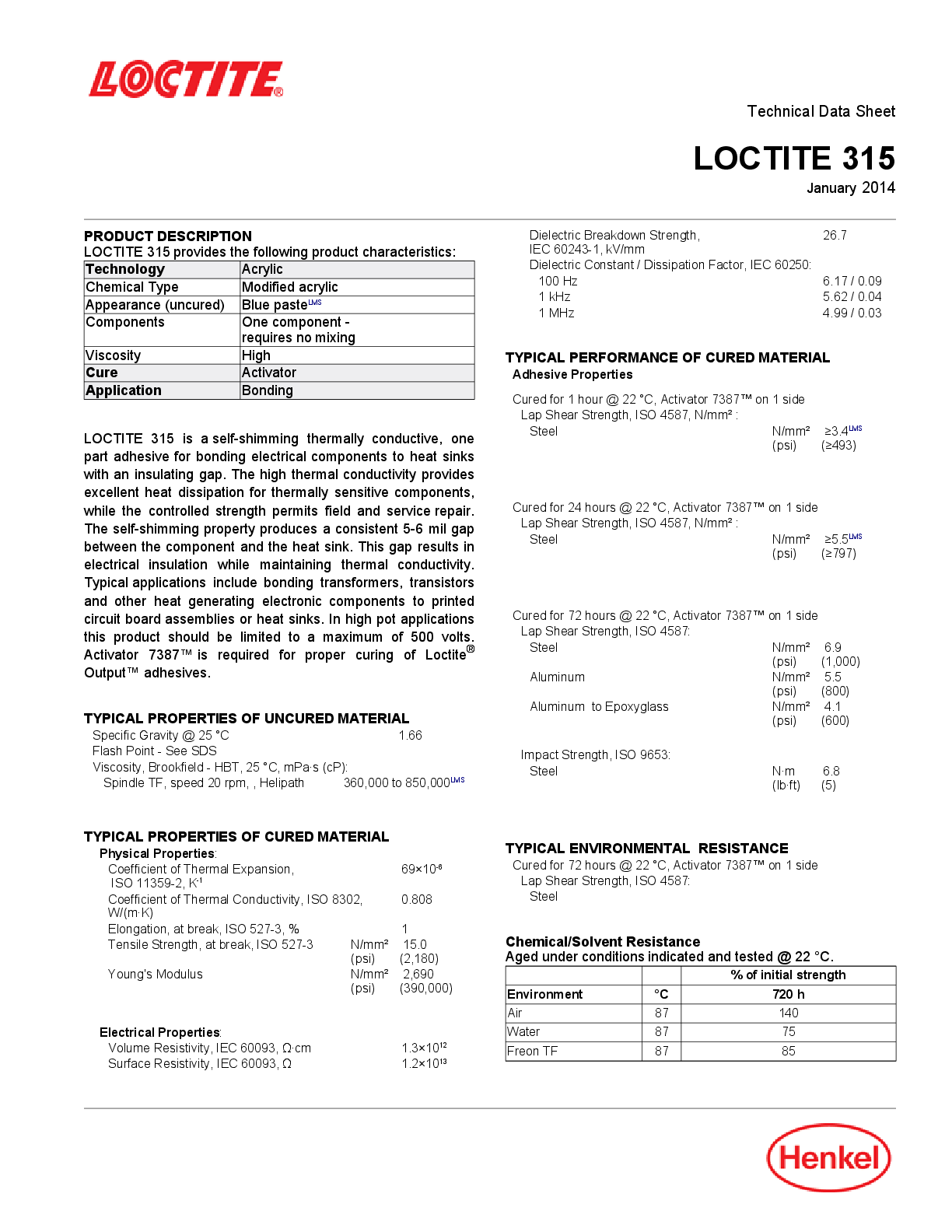

Technical resources
£68.95
(£82.74
inc VAT)
LOCTITE 315 is a self-shimming thermally conductive, one part adhesive for bonding electrical components to heat sinks with an insulating gap
