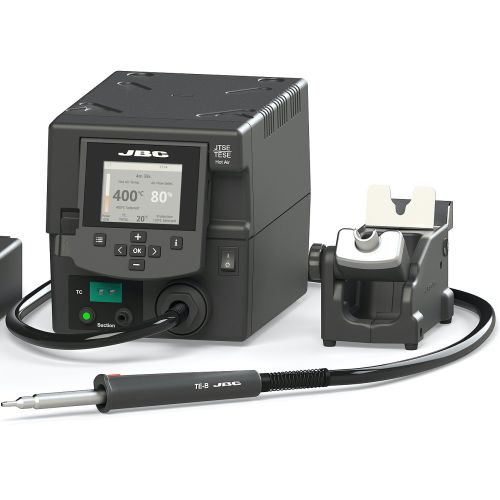

The TESE-2QA is a precision hot air Station capable of reworking small and medium SMDs.Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB. As with all the JBC Stations, the TESE-Q has a menu with more than 10 parameters to customise the control unit. This comes without the accessories which is the extractor desk.


Qualities and Characteristics

  • High powered hot air Station
  • External thermocouple
  • Menu with more than 10 parameters

Product Contains

  • 1 JTSE-UA Hot Air Control Unit
  • 1 TE-TB Precision Heater hose set
  • 1 TN9209 Nozzle for TE heater
  • 1 TN9208 Nozzle for TE heater
  • 1 TN9080 Nozzle for TE heater

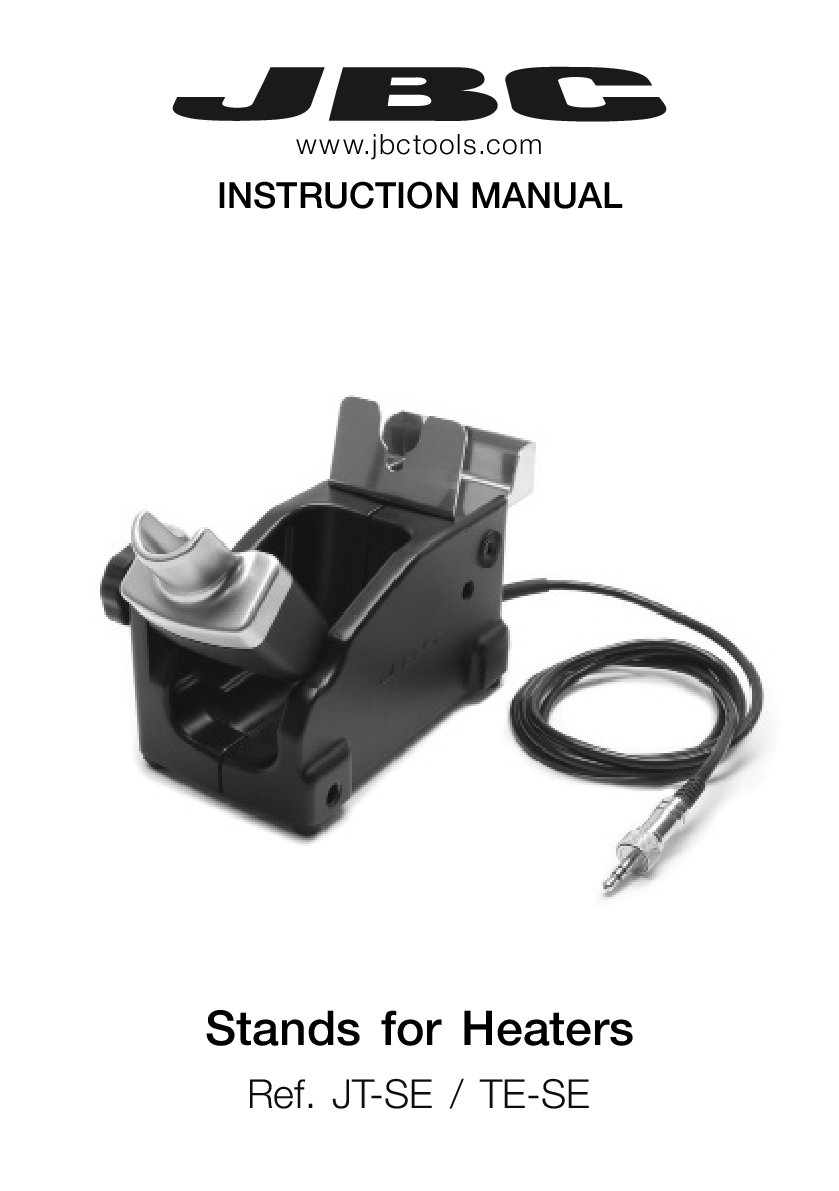

  • 1 TE-SE Stand for TE heater
  • 1 PH218 Thermocouple Type K

Technical Attributes

Vacuum 30% / 228 mmHg / 9 inHg
Temperature Profiles Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.

Selectable Parameters

Selectable Temperature 150 to 450 ºC / 300 to 840 ºF
Operating Modes Heating / Profiles / Cooling
Air Flow Regulation 2 to 17 SLPM

ESD/EOS

ESD Safe

Power Supply

Peak Power 300 W
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC
USB-A Front:Firmware update,Graphics / Profiles management
Equipotential Bonding Optional connection to EPA
Robot RS-232 remote control
Type K Thermocouple Can be used both for Control and Protection purposes.
Pedal Optional tool control
Write Your Own Review
You're reviewing:JBC TESE-2QA Precision Hot Air Stations without Accessories (NO ACCESSORIES)
Your Rating
£1,176.00 (£1,411.20 inc VAT)

JBC TESE (A.K.A TE) Precision Hot Air Stations without Accessories (NO ACCESSORIES)
