The TESE-Q is a precision hot air Station capable of reworking small and medium SMDs.Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.As all the JBC Stations, the TESE-Q has a menu with more than 10 parameters to customise the control unit.This comes with the assesories which is the extractor desk.


Qualities and Characteristics

  • Precision hot air Station
  • High-precise close-loop control of the component
  • External thermocouple
  • Menu with more than 10 parameters

Product Contains

  • 1 TESE-2A 230V Hot Air Control Unit
  • 1 TE-TB Precision Heater hose set
  • Extractor Desk Composition:1 E2052 Extractor 20 x 20 mm,1 E2064 Extractor 20 x 26 mm,1 E2184 Extractor 24 x 24 mm,1 P2220 Protector 10 x 10 mm,1 P2235 Protector 12 x 17 mm,1 P4000 Protector 12.4 x 12.5 mm,1 P2230 Protector 15 x 15 mm,1 P4010 Protector 17 x 17 mm,1 T2050 Tripod ø39 mm,1 T2250 Tripod ø85 mm1 TN9209 Nozzle for TE heater
  • 1 TN9208 Nozzle for TE heater
  • 1 TN9080 Nozzle for TE heater

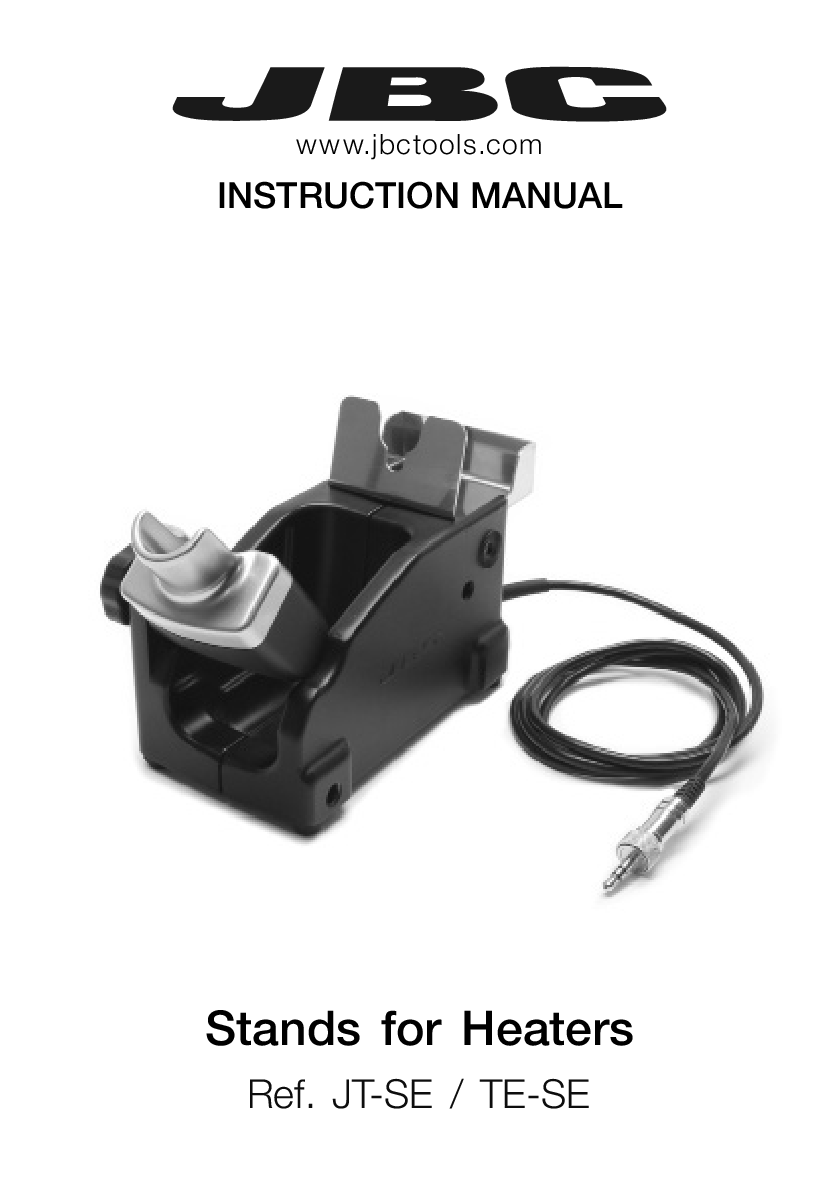

  • 1 TE-SE Stand for TE heater
  • 1 PH218 Thermocouple Type K

Technical Attributes

Vacuum 30% / 228 mmHg / 9 inHg
Temperature Profiles Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.

Selectable Parameters

Selectable Temperature 150 to 450 ºC / 300 to 840 ºF
Operating Modes Heating / Profiles / Cooling
Air Flow Regulation 2 to 17 SLPM

ESD/EOS

ESD Safe

Power Supply

Peak Power 300 W
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC
USB-A Front:Firmware update,Graphics / Profiles management
Equipotential Bonding Optional connection to EPA
Robot RS-232 remote control
Type K Thermocouple Can be used both for Control and Protection purposes.
Pedal Optional tool control
