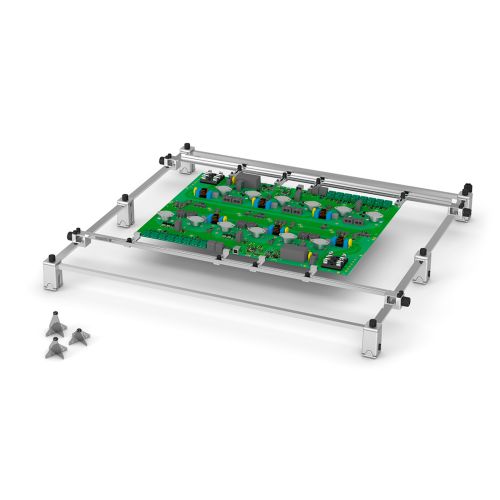

This support is perfectly adapted to any type of big-sized PCBs by means of its many adjustable elements.It allows you to properly position PCBs of the same batch so as to always heat the same area. It is ideal for repetitive soldering jobs which means saving time and optimizing workflow.PHXL-SA incorporates several slots for a precise alignment to PHXLE XL Preheater.The user can modify the PCB clearance (28, 38 or 48 mm / 1.1, 1.5 or 1.9 in) according to their working needs.It is also possible to use the 3 Metallic Supports for your working level. Arrange them between the PCB and the Preheater to stabilize the PCB so as to avoid PCB deformation.


Qualities and Characteristics

  • Can adapt to any small PCB due to its adjustable elements
  • Ability to properly posistion PCBs
  • Precise allignment
  • Also possible to use the 3 Metallic Supports for your working leve

Product Contains

  • 1 PHXL-SA PCB Support

Technical Attributes

PCB Support 595 x 520 x 180 mm / 5.01 kg

ESD/EOS

ESD Safe Connector
Write Your Own Review
You're reviewing:JBC PHXL-SA XL PCB Support for large PCBAs
Your Rating
£1,561.00 (£1,873.20 inc VAT)
JBC PHXL-SA (A.K.A PSX) XL PCB Support for large PCBAs
