JBC PHSMK Multiaxis Preheater Set

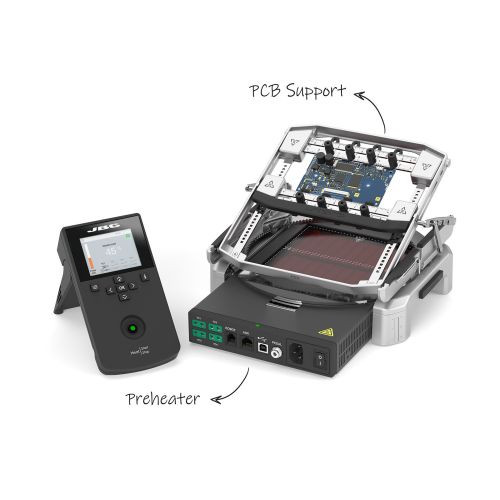

This composition, Preheater and Multiaxis PCB Support, is a solution to rework small / medium PCBAs, by combining two key features:
Consistent heating and thermal shock prevention
• PHSE Preheater indispensable for avoiding thermal shock on multilayer PCBAs while reworking. It features a heating area of 130 x 135 mm / 5.12 x 5.31 in.
Optimized workflow and precise PCB handling
• PSS Multiaxis Rotative PCB Support allowing fast, easy and precise PCB changes, enabling soldering and rework tasks in any position - perfect for repetitive soldering jobs.
PRODUCT COMPOSITION
1 x Instruction Manual
1 x PHSE Preheater for PCBs up to 13 x 13 cm / 5 x 5"
1 x PSS Multiaxis Rotative Support for PCBs up to 13 x 13 cm / 5 x 5"
2 x PH218 Thermocouple Type K
1 x PH217 Kapton Tape
Weight and dimensions
PreHeater Unit 195 x 288 x 42 mm / 5.07 kg. / 7.68 x 11.34 x 1.65 in / 11.17 lb.
Package 444 x 395 x 273 mm / 7.21 kg. / 17.48 x 15.55 x 10.75 in / 15.90 lb.
Attributes
| Model | PHSMK |
Selectable Parameters
| Selectable Temperature | 50 to 250 ºC / 120 to 482 ºF |
| Heating Area | 65 x 135 mm / 2.6 x 5.3 in - 1 zone 130 x 135 mm / 5.1 x 5.3 in - 2 zones |
| Selectable Temperature Profiles | 3 profiles (2, 3 or 4 steps) |
| User Profiles | 22 (up to 16 steps for each) |
Power Supply
| Peak Power | 800 W |
Write Your Own Review
£2,314.00
(£2,776.80
inc VAT)
JBC PHSMK Multiaxis Preheater Set for PCBs up to 13 x 13 cm / 5 x 5"
