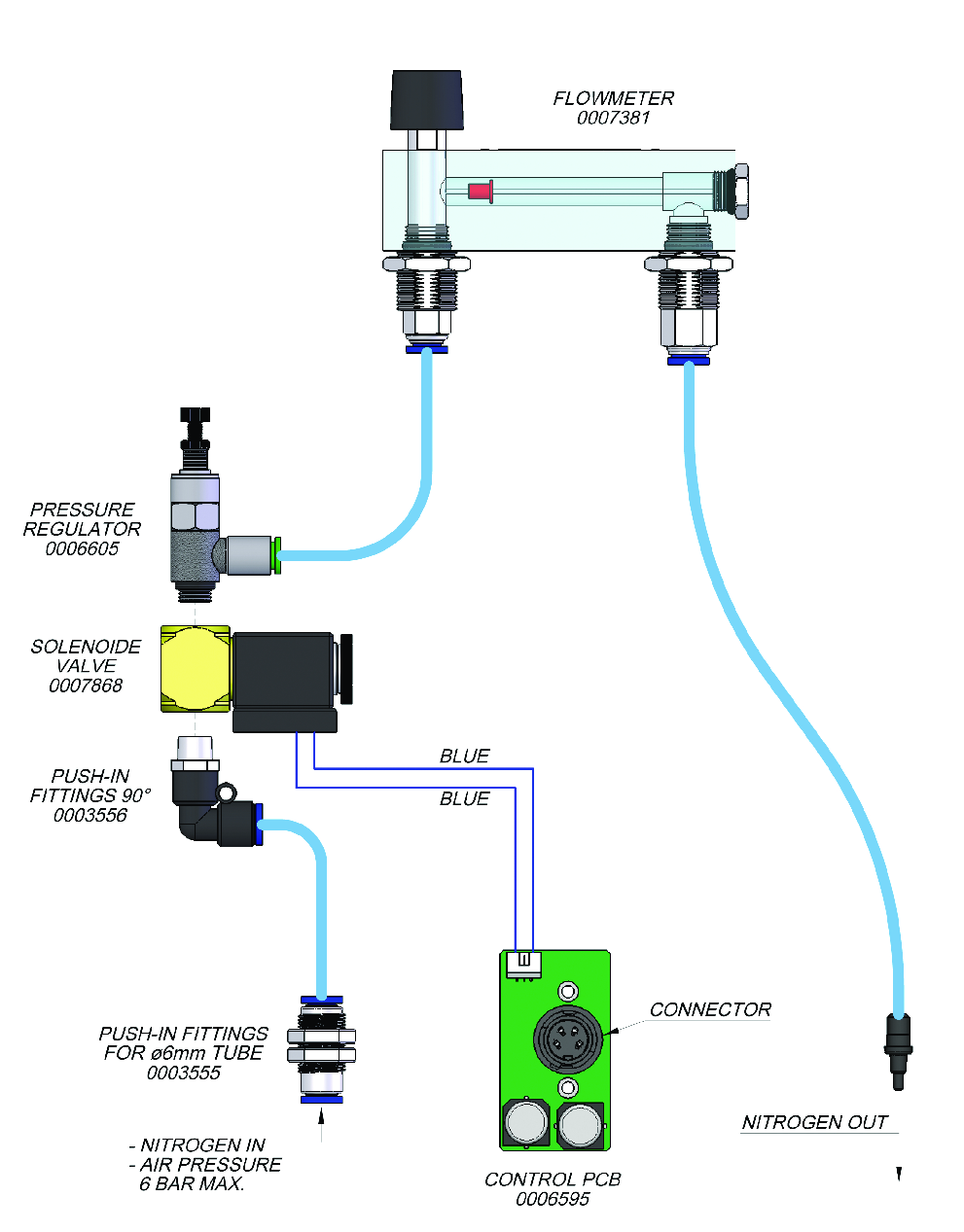

Nitrogen improves the quality of any solder joint as it provides extra heat and helps prevent tip oxidation.The MN-A regulates nitrogen flow to the soldering tip in order to optimize consumption.It automatically activates the flow when you remove the Nitrogen Handle (T210-NA or T245-NA) from the stand. The flow stops when the Handle is placed back and the tip temperature drops to the sleep temperature.It requires the GN-A Nitrogen Generator or an available nitrogen supply at the operator´s bench.The MN-A works with DI Control Unit and the discontinued DD or DM.


Qualities and Characteristics

  • Nitrogen improves the quality of any solder joint
  • MN-A regulates nitrogen flow
  • Automatically activates the flow when you remove the Nitrogen Handle
  • Requires the GN-A Nitrogen Generator or an available nitrogen supply at the operator´s bench
  • Works with DI Control Unit and the discontinued DD or DM
  • ESD Safe

Product Contains

  • 1 MN-A Nitrogen Flow Regulator for DI

Technical Attributes

Air Pressure 6 Bar (max)

Selectable Parameters

Air Flow Regulation 0.5 - 3.5 SLPM (5 Bar)

ESD/EOS

ESD Safe

Power Supply

Ambient operating temp. 10 to 40 ºC / 50 to 104 ºF
Write Your Own Review
You're reviewing:JBC MN-A Nitrogen Flow Regulator for DI
Your Rating
£392.00 (£470.40 inc VAT)
JBC MN-A (A.K.A MN) Nitrogen Flow Regulator for DI
