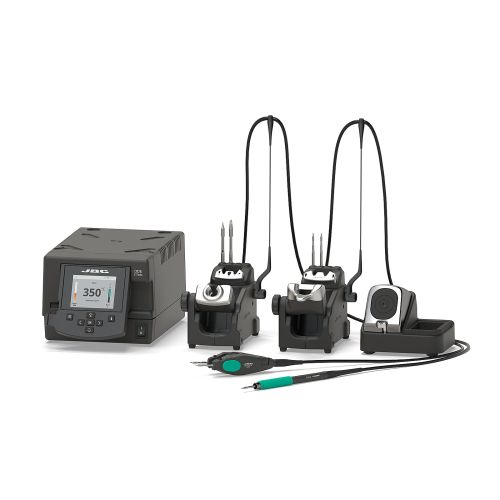

DDPE Precision Rework Station is a perfect solution for fast and precise SMD rework of chip components and small outline ICs.The DDE Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools. This rework station comes with the T210 Precision Purpose Handle and the AM120 Adjustable Micro Tweezers. The short distance tip-to-grip of both tools provides the highest precision handling even under a microscope. The Precision Handle T210 work with C210 cartridges and the AM120 with C120 cartridges whose exceptional thinness allows reworking components on heavily populated PCBAs without disturbing nearby components


Qualities and Characteristics

  • DDE Control Unit manages up to 2 tools simultaneously
  • DDE Control Unit fully compatible with 10 different JBC tool
  • Comes with T210 Precision Purpose Handle and the AM120 Adjustable Micro Tweezers
  • Short distance tip-to-grip of both tools provides the highest precision handling even under a microscope.
  • ESD Safe

Product Contains

  • 1 DDPE-2QB 230V 2 Tools Control Unit
  • 1 AM120-A Adjustable Micro Tweezers
    (cartridge not included)
  • 1T210-A Precision Purpose Handle (cartridge not included)
  • 1 AD-SE Stand for T210 & T245 Handles
  • 1 AM-SA Stand for AM120 & PA120 Micro Tweezers
  • 1 CL8499 Manual Tip Cleaner

Technical Attributes

Idle temp. stability (still air) ±1.5ºC (±3ºF): Meets and exceed IPC J-STD-001F
Temperature Accuracy ±3% (using reference cartridge)

Selectable Parameters

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
Temperature Adjustment ±50ºC (±90ºF) Through station menu setting

ESD/EOS

ESD Safe
Tip to ground resistance Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power 150 W per tool - 23.5V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update Soldering Graphics management
Equipotential Bonding Optional connection to EPA
Write Your Own Review
You're reviewing:JBC DDPE-2QC Dual Tool DDE Precision Station
Your Rating
£1,260.00 (£1,512.00 inc VAT)
JBC DDPE (A.K.A DDP) Dual Tool DDE Precision Station
