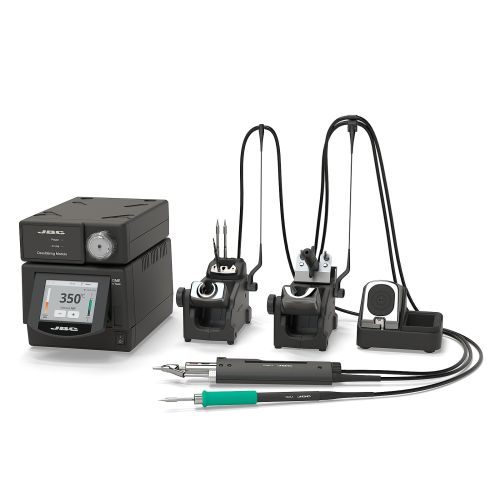

The DME manages up to 4 tools simultaneously and is fully compatible with 10 different JBC tools. Check below for the complete list of compatible tools. The MSE Electric Desoldering Module is indispensable for a complete desoldering process. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend the life of tips. It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management. The DMSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.


Qualities and Characteristics

  • Fully compatible with 10 different JBC tools
  • JBC Most Efficient Soldering System
  • Sleep and Hibernation mode
  • Customization
  • Works simultaneously with the DR560 Desoldering Iron and the T245 Handle
  • ESD Safe

Product Contains

  • 1 DME 4 Tools Control Unit 230V
  • 1 MSE-A Electric Desoldering Module for DDE & DME
  • 1 T245-A General Purpose Handle (cartridge not included)
  • 1 DR560-A Desoldering Iron
  • 1 AD-SE Stand for T210 & T245 Handles
  • 1 DR-SE Stand for DR560
  • 1 CL8499 Manual Tip Cleaner

Technical Attributes

Vacuum 75% / 570 mmHg / 22.4 inHg
Flow Rate 9 SLPM

Selectable Parameters

Selectable Temperature 180 to 450 ºC / 360 to 840 ºF

ESD/EOS

ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power 160 W per tool - 23.5 V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics / Profiles Management / Dino-Lite USB microscope connection. Compatible models: AM2011 and AM2111.
Equipotential Bonding Optional connection to EPA
Robot RS-232 remote control or Smart Fume Extractor connection
LAN Remote control / Traceability
Write Your Own Review
You're reviewing:JBC DMSE-2QA Dual Tool DME Station with Electric Pump
Your Rating
£2,215.00 (£2,658.00 inc VAT)
JBC DMSE (A.K.A DMS) Dual Tool DME Station with Electric Pump
