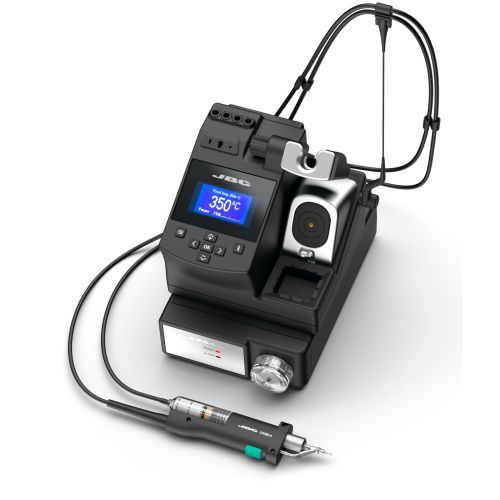

JBC CS-2F Desoldering Station with Electric Pump and DS360-A Micro Desoldering Iron

The perfect station for precision desoldering jobs of THT components and SMD pad cleaning.It uses the DS360-A Micro Desoldering Iron, a microdesoldering iron for thin desoldering jobs of SMD or conventional components. It is capable to provide up to 40W if it is required.


Qualities and Characteristics

  • Equipped with the MS-A Electric Pump
  • CP has a menu with more than 10 parameters to customize the control unit.
  • JBC Most Efficient Soldering System
  • Hibernation mode help to extend the life of tips
  • Comfortable DS360 Micro Desoldering Iron included
  • ESD Safe

Product Contains

  • 1 CSV 230V Control Unit
  • 1MS-A Electric Desoldering Module
  • 1 DS360-A Micro Desoldering Iron
  • 5 C360002 Through hole desoldering Ø 0.8
  • 5 C360004 Through hole desoldering Ø 1.2

Technical Attributes

Vacuum 75% / 570 mmHg / 22.4 inHg
Flow Rate 9 SLPM

Selectable Parameters

Selectable Temperature 180 to 450 ºC / 360 to 840 ºF

ESD/EOS

ESD Safe
Tip to ground resistance Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power 40 W - 23.5V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Software PC / Firmware update
Equipotential Bonding Optional connection to EPA
Write Your Own Review
You're reviewing:JBC CS-2F Desoldering Station with Electric Pump and DS360-A Micro Desoldering Iron
Your Rating
£980.00 (£1,176.00 inc VAT)
JBC CS (A.K.A CDD) Desoldering Station with Electric Pump and DS360-A (A.K.A DS360) Micro Desoldering Iron
