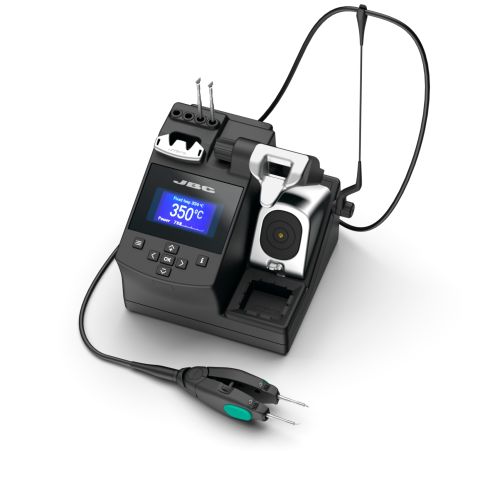

The best solution for soldering and rework of SMD components such as chips, small/medium SOP components and dual-line components. It uses the AM120-A Adjustable Micro Tweezers for fast and precise SMD rework which requires the highest precision.


Qualities and Characteristics

  • Fast and easy configuration of the station thanks to the 7-key keypad.
  • Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
  • Connectivity to JBC Fume Extractor (connector RJ12).
  • JBC Most Efficient Soldering System
  • Sleep & Hibernation Modes

Product Contains

  • 1 CP-2QF 230 V Micro Tweezers Station
  • 1 AM120-A Adjustable Micro Tweezers (cartridge not included)

Technical Attributes

Idle temp. stability (still air) ±1.5 ºC / ±3 ºF Meets and exceed IPC J-STD-001F
Temperature Accuracy ±3% (using reference cartridge)

Selectable Parameters

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
Temperature Adjustment ±50ºC (±90ºF) Through station menu setting

ESD/EOS

Tip to ground resistance Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power 80 W - 23.5 V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Software PC / Firmware update
