The HDE-KD Tweezers Station has been designed to reduce the soldering time in applications that require a large amount of heatspan. For example, coaxial cable shields soldering in telecommunication antennas, soldering of large copper conductors in medical imaging scanners, battery terminals, large-size capacitors, etc. It also allows a direct connection with JBC Fume Extractors.


Qualities and Characteristics

  • Reduce the soldering time in applications that require a large amount of heatspan
  • CP has a menu with more than 10 parameters to customize the control unit.
  • JBC Most Efficient Soldering System
  • Hibernation mode help to extend the life of tips
  • Comfortable DS360 Micro Desoldering Iron included
  • ESD Safe

Product Contains

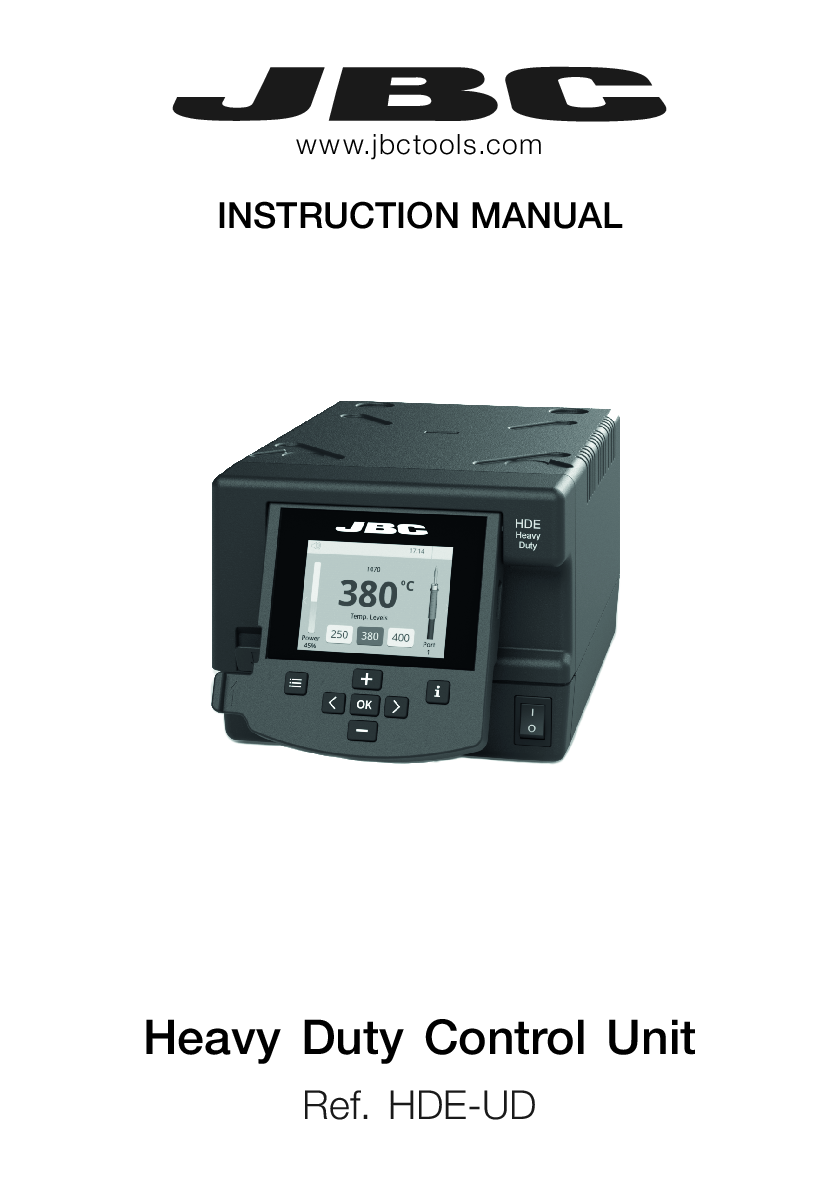

  • 2 HDE-U 230V Heavy Duty Control Unit

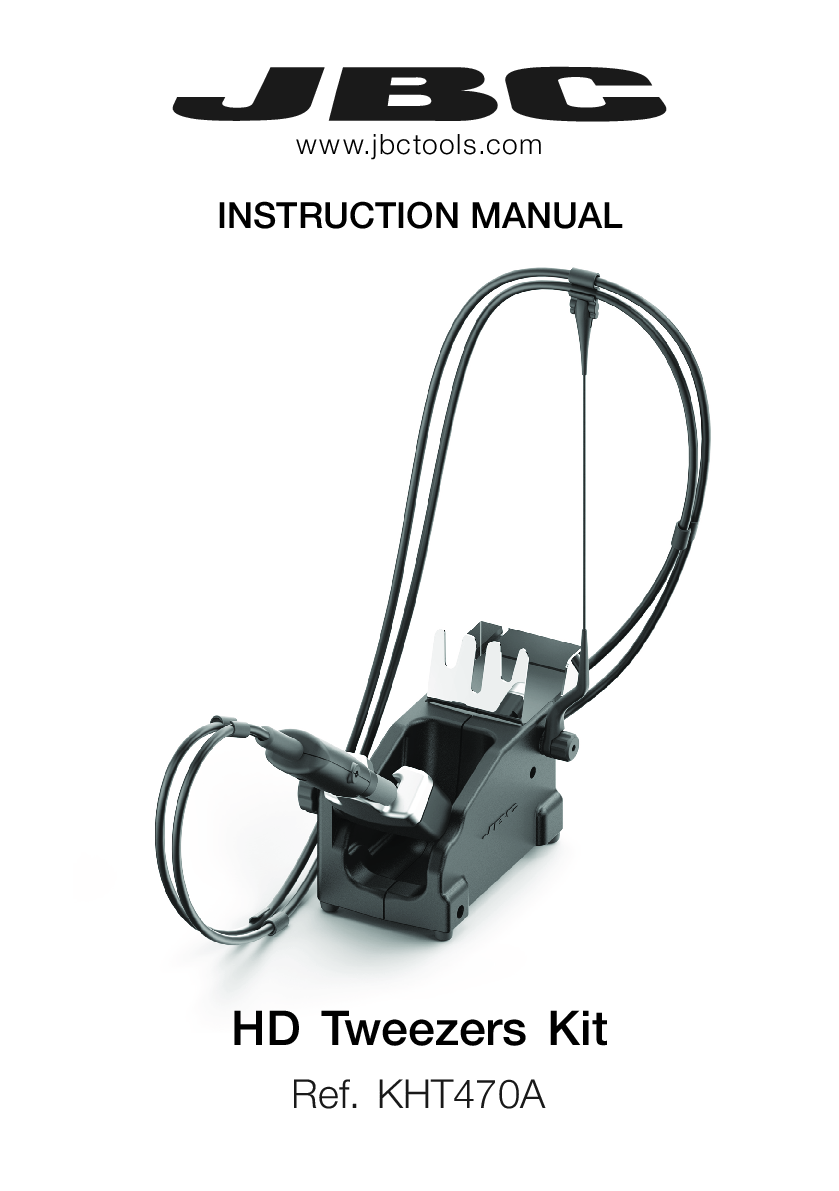

  • 1 HT470-A Heavy Duty Thermal Tweezers (cartridge not included)
  • 1 HDT-SE Stand for HT470
  • 1 SCH-A Cartridge Holder

Technical Attributes

Idle temp. stability (still air) ±1.5ºC (±3ºF): Meets and exceed IPC J-STD-001F
Temperature Accuracy ±3% (using reference cartridge)

Selectable Parameters

Selectable Temperature 90 to 500 ºC / 190 to 932 ºF
Temperature Adjustment ±50ºC (±90ºF) Through station menu setting

ESD/EOS

ESD Safe
Tip to ground resistance Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power 250 W - 42V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics management
Write Your Own Review
You're reviewing:JBC HDE-2KD Heavy Duty Tweezers Station
Your Rating
£1,539.00 (£1,846.80 inc VAT)
