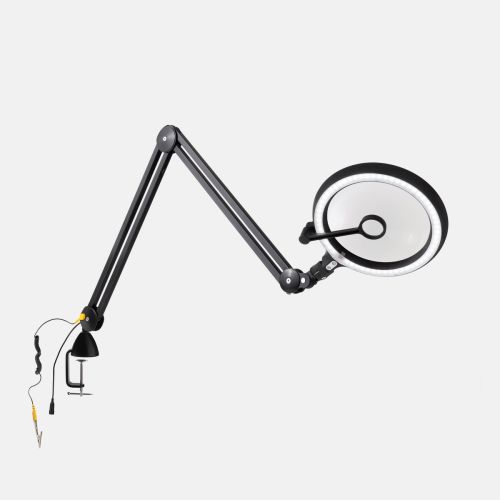

Daylight Omega 7 ESD Magnifier
Omega 7 ESD Magnifier is made of carbon fiber and special conductive coatings guaranteeing full ESD compliance for the lifetime of the magnifier. It has a large optical quality glass lens (17.5 cm - 7”) and 3 dioptres (1.75X) providing the largest field of view for precise inspection of electronic components. Supplied with a 12 dioptres (4.0X) swing arm lens for inspecting fine detail. An optional 12.7 cm (5”) diameter with 5 dioptres (2.25X) lens is available separately.
Qualities and Characteristics
- ESD safe
- Optical quality low iron glass lens Ø 17.5 cm (7″)
- 3 Dioptres (1.75X)
- 12 Dioptres (4.0X)
- 2 Brightness levels
- Long reach 118 cm
- Adjustable head joint with wing nut
Ideal for Industries
- ESD safe environments
- Professional applications
- Electronic components
- Soldering
Attributes
| Model | D25171 Omega 7 ESD |
Technical Attributes
| Lumens | 814 |
| Lux at 15cm | 6,300 |
| Colour Temperature | 6,000°K |
| 2 Steps Touch Dimmer | 6,300 – 3,000 |
| Lens Ø | 17.5 cm (7″) |
Physical Attributes
| Colour | Black |
| Dimensions (HxWxD) | 60 cm (23.6″) x 23 cm (9″) x 90 cm (35″) |
| Light Source | LED |
| Energy Consumption | 12W |
| LED Rated Life (hours) | 50,000 |
| Lens Material | Optical quality low iron glass (ESD safe) |
| Magnification | 3 dioptres (1.75X) |
| Additional Magnification | 12 dioptres (4.0X) |
Write Your Own Review
Technical resources
£305.00
(£366.00
inc VAT)
Daylight Omega 7 ESD. ESD safe, optical quality glass lens, 3 dioptres (1.75X) & 12 dioptres (4.0X) magnification, Ø 17.5 cm (7").
