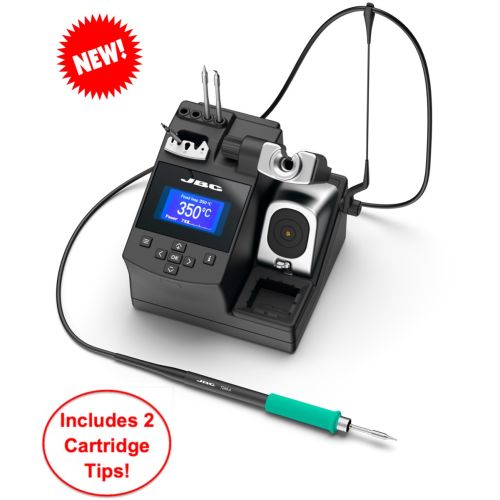

JBC CD-2BQF General Purpose Soldering Station with T245-A Handpiece and 2 Cartridge Tips

Rating:
100 % of 100

This station is suitable for both SMD or THT components. It uses the T245-A General Purpose Handle the perfect tool for general electronic applications with high power requirements.


Qualities and Characteristics

  • Fast and easy configuration of the station thanks to the 7-key keypad.
  • Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
  • Connectivity to JBC Fume Extractor (connector RJ12).
  • JBC Most Efficient Soldering System
  • Sleep & Hibernation Modes

Product Contains

  • 1CD-2BQF 230V Soldering Station
  • 1 T245-A General Purpose Handle
  • 2 Cartridge Tips: C245-741 & C245-903 or any other within the price range (specify at order)

Selectable Parameters

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF

ESD/EOS

ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power 130 W - 23.5 V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Software PC / Firmware update
Equipotential Bonding Optional connection to EPA
