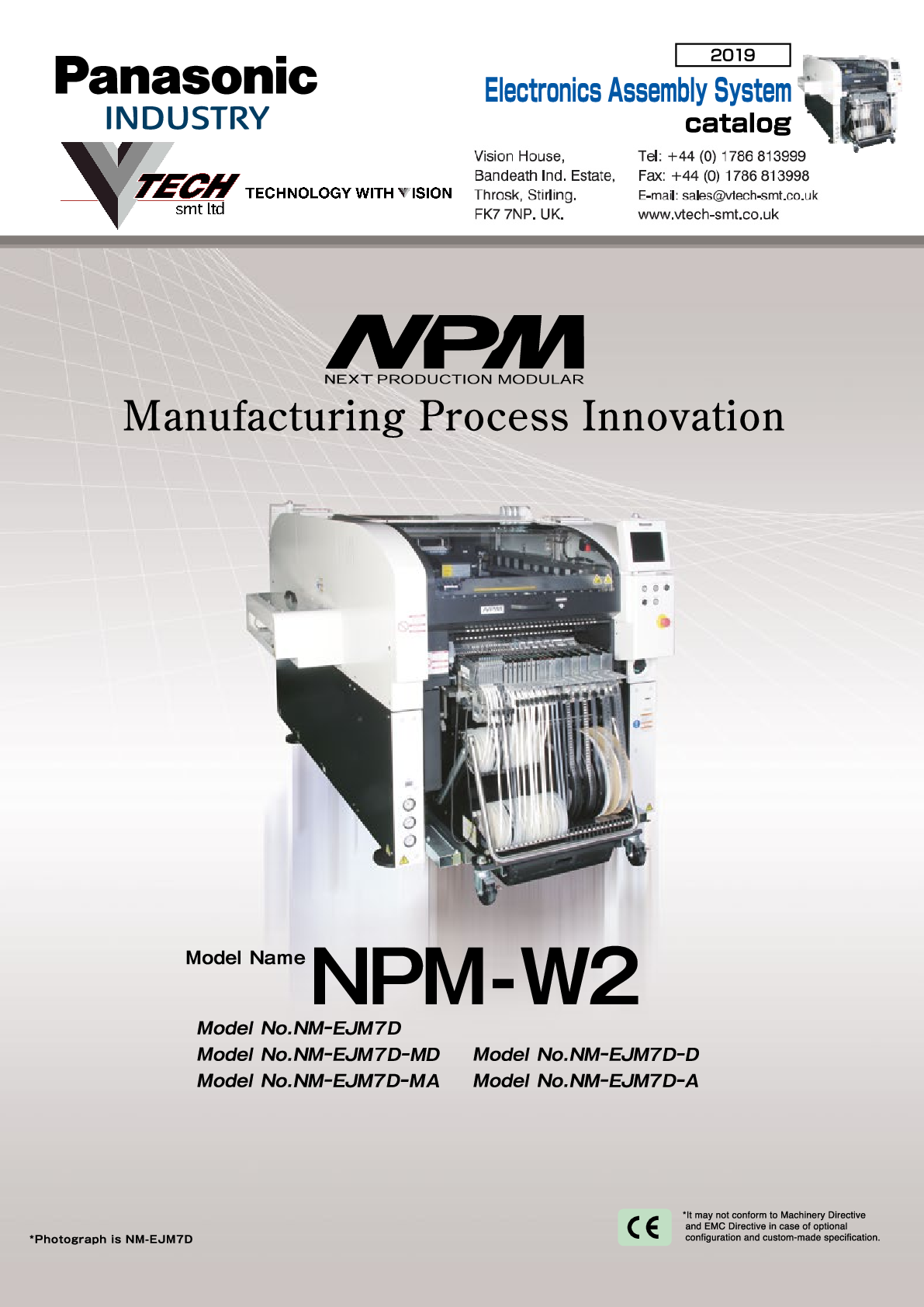

Panasonic NPM-W2 / NPM-W2S

Features

Higher productivity and quality thanks to the integration of printing, placement and inspection processes make the NPM-W2 one of the most flexible and versatile pick-and-place solutions on the market.

This machine provides the user with a tool that allows him to choose between high speed or high accuracy, depending on the PCB requirements.

In addition, the NPM-W2 is optimised for larger boards and larger components, such as PCBs up to 750 x 550 mm and components up to 150 x 25 x 30 mm (L, W, H). For high productivity, dual lanes can be used.
Features

The multifunctional NPM-W2 is equipped with a 12-nozzle head and can place 38,500 components. 120 feeders can be mounted.

Additionally, the NPM-W2 can automatically inspect solder depots and components according to the production data.

As a third function, the NPM can be fitted with the conventional HDF discharge mechanism, which ensures high-quality non-contact dispensing with a screw valve dispenser.

This platform is also available as a single-beam solution:

  • NPM-W2S single beam allows various operations ranging, from NPM-series backup to multiple connection configurations.


General Attributes

Model NPM-W2
Write Your Own Review
You're reviewing:Panasonic NPM-W2 / NPM-W2S
Your Rating
Call for price



Panasonic NPM-W2 / NPM-W2S

The NPM-W2 combines accurate component placement, precise SPI and AOI inspection and reproductive adhesive dispensing in one high-speed solution.



Also available as a single-beam platform NPM-W2S.
