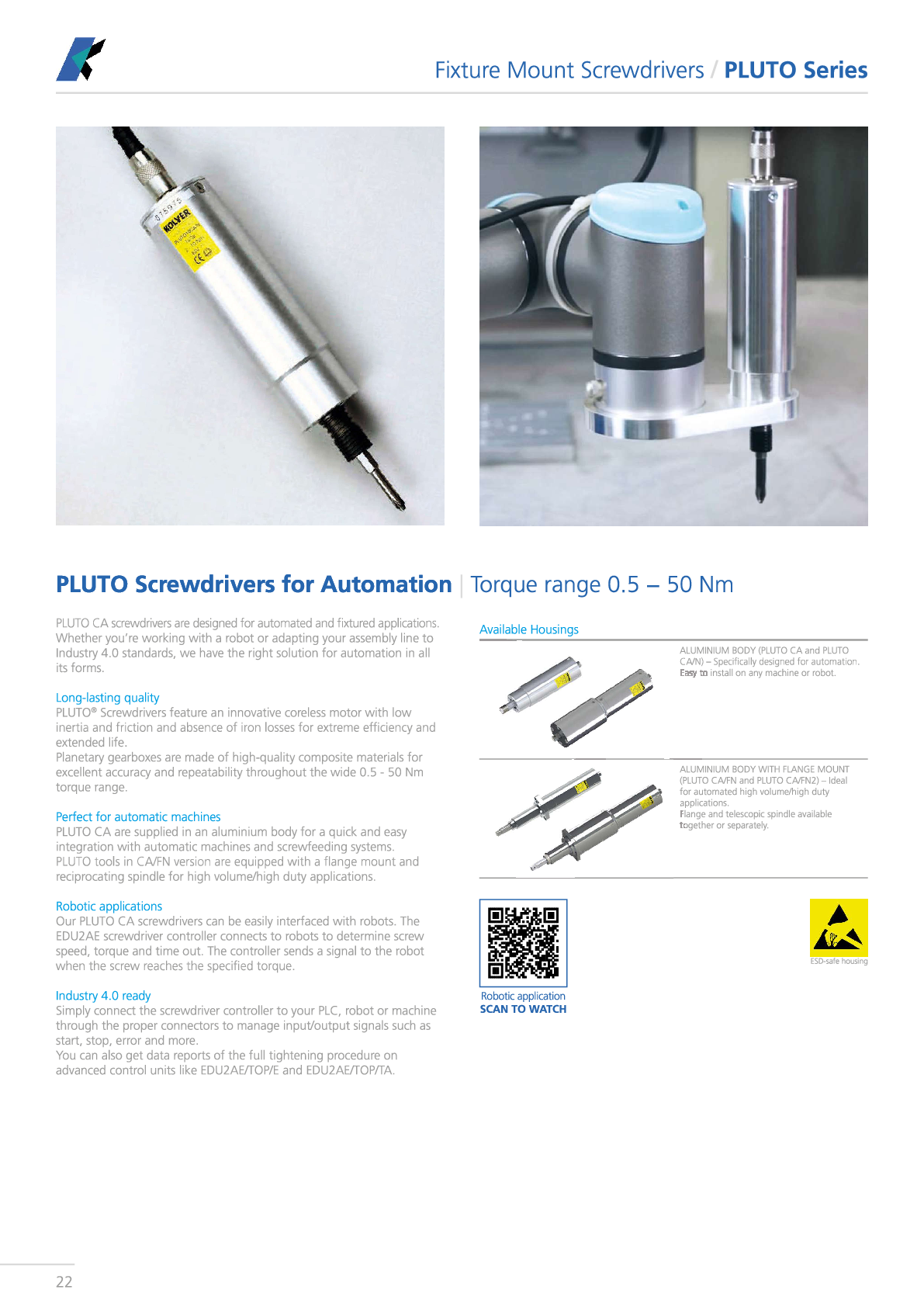

CA screwdrivers are designed for automated and fixtured applications.

The PLUTO CA/FN2 series incorporates the PLUTO DC-controlled electric screwdriver design, supplied in a inline aluminium housing for flange mounting applications. The DC motor and solid state controls of the PLUTO are ideal for automated high volume/ high duty applications. KBL brushless screwdrivers are also available in /FN version.Flange and telescopic spindle available together or separately.

PLUTO20CA and PLUTO35CA screwdrivers are available in SR version: with start and reverse buttons on the aluminium body.

IMPORTANT: Continuous use over 80% of torque range is not recommended.


Qualities and Characteristics

  • Aluminum body for easy and quick clamp
  • Special wiring for specific use with SG controllers with remote start and reverse and torque signal.

All models suppled with:

  • 2.5m cable with plug for controller.

Please be aware you need an appropriate Kolver control unit to be able to power the torque driver.

General Attributes

Model PLUTO15CA/N

Technical Attributes

Controller EDU2AE
Torque Nm 1.5-10.80
RPM Max 320
RPM Min 60
Output Hex 1/4

Physical Attributes

Dimensions mm 168x40
Write Your Own Review
You're reviewing:Kolver PLUTO15CA/N
Your Rating
£1,163.00 (£1,395.60 inc VAT)
Kolver PLUTO15CA/N Remote Start, fixtured, inline current controlled driver, 60-320 RPM
