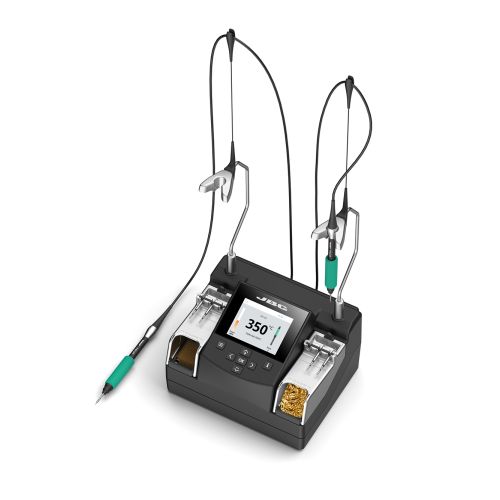

The NANE Station is the best solution for soldering and rework of SMT components requiring the highest precision. It works with the JBC Most Efficient Soldering System and the intelligent Hibernation mode. This station comes with two NT115 Nano Handle. The short distance from the tip to the handle offers maximum control even when using a microscope. The NANE-C Rework Station works with the C115 Cartridge Range. As with all the JBC Stations, the NANE has a menu with more than 10 parameters to customize the control unit.


Qualities and Characteristics

  • JBC Most Efficient Soldering System
  • Intelligent Hibernation mode
  • Short distance from the tip to the handle offers maximum control
  • Works with the C115 Cartridge Range
  • NANE has a menu with more than 10 parameters to customize the control unit.
  • ESD Safe

Product Contains

  • 1 NAE 230V Control Unit
  • 2 NT115-A Nano Handle
  • 1 Conical Ø 0.1
  • 1 Conical Ø 0.3
  • 2 C115-105 Conical Bent Ø 0.3
  • 1 Conical Ø 0.8
  • 1 Knife (2,5x0.3)
  • 2 Chisel (1x0.3)
  • 1 P-405 Pedal

Selectable Parameters

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF

ESD/EOS

ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power 14 W per tool - 8.5 V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics management
Equipotential Bonding Optional connection to EPA
Robot RS-232 remote control or Smart Fume Extractor connection
Pedal Connect a pedal - P405 to control the tools (1 per tool) . It allows using Nano tweezers for soldering.
