Clean and dry compressed air is required.The pneumatic suction module is indispensable for a complete desoldering process.By using compressed air and a Venturi valve, the system provides the best results due to its instantaneous vacuum ramp.It is equipped with some suction filters easy to change in order to extend the pump´s life.MV is compatibe with CV station and DI control unit which manage the tip temperature while module removes the molten solder.MV works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.


Qualities and Characteristics

  • Instantaneous vacuum ramp
  • Supplied with easy-to-change filters
  • Modular
  • Works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
  • ESD Safe

Product Contains

  • 1 MV-A Pneumatic Desoldering Module

Technical Attributes

Air Pressure 4-6 Bar
Vacuum 90% / 680 mmHg / 26.8 inHg
Flow Rate 15 SLPM

ESD/EOS

ESD Safe

Power Supply

Ambient operating temp. 10 to 40 ºC / 50 to 104 ºF
Write Your Own Review
You're reviewing:JBC MV-A Pneumatic Desoldering Module for DI
Your Rating
£482.00 (£578.40 inc VAT)

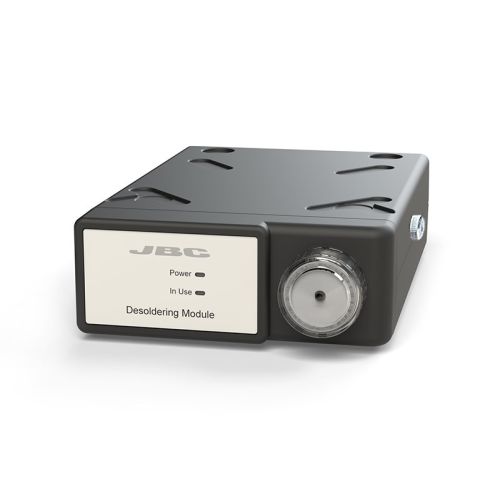

JBC MV-A (A.K.A MV) Pneumatic Desoldering Module for DI (A.K.A DIU)
