This is the ideal solution for improving the quality of any solder joint by using nitrogen as it provides extra heat and helps prevent tip oxidation.The nitrogen flow is automatically activated when you remove the T245-NA Nitrogen Handle from the stand. It stops when the Handle is placed back and the tip temperature drops to the sleep Temperature.This kit requires the GN-A Nitrogen Generator or an available nitrogen supply at the operator´s bench.The MN-A works with DI Control Unit and the discontinued DD or DM.


Qualities and Characteristics

  • Ideal for improving the quality of any solder joint by using nitrogen
  • Sleep and Hibernation mode
  • Requires the GN-A Nitrogen Generator or an available nitrogen supply at the operator´s bench
  • Works with DI Control Unit and the discontinued DD or DM

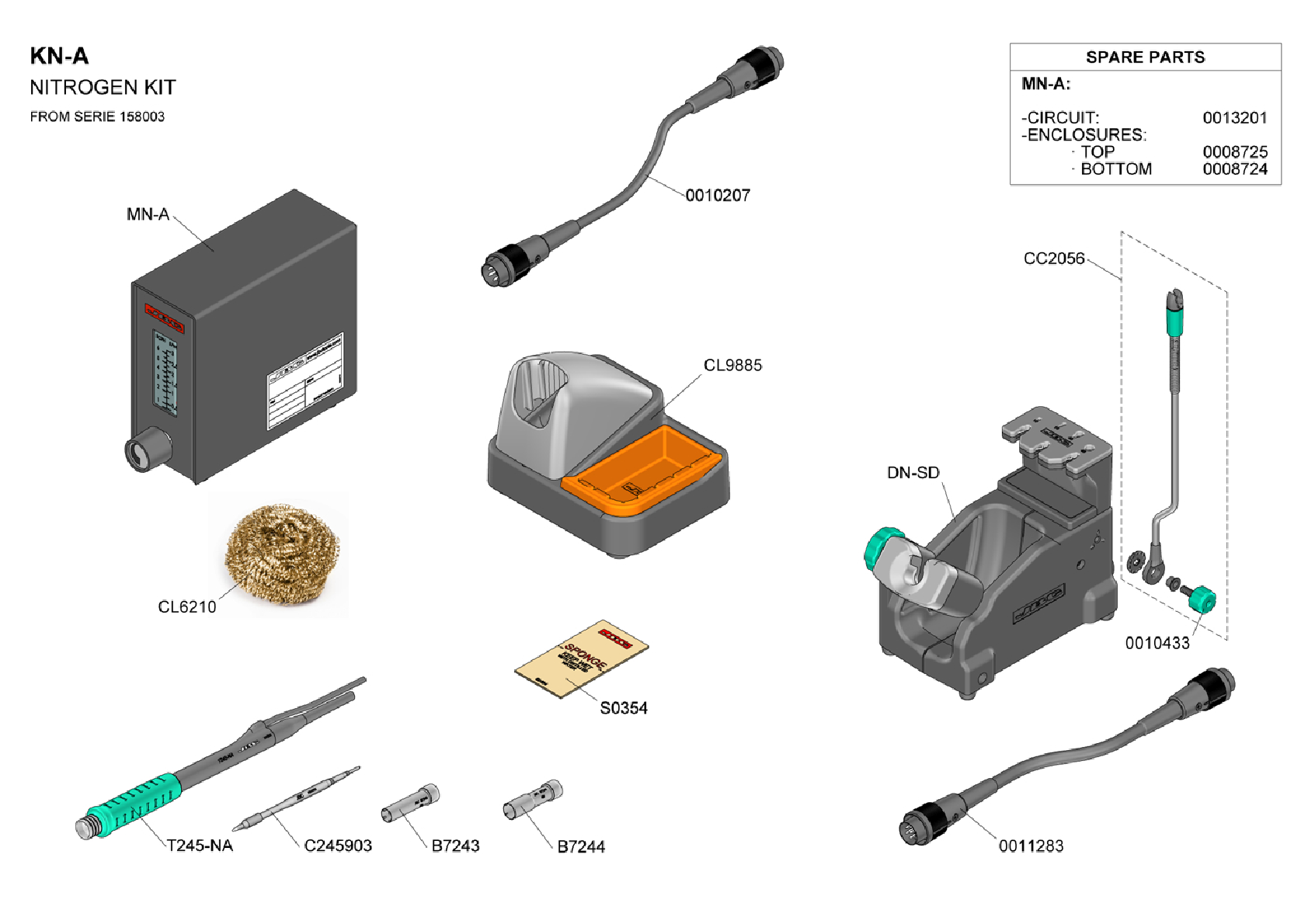

Product Contains

  • 1 MN-A Nitrogen Flow Regulator for DI
  • 1 T245-NA Nitrogen General Purpose Handle
  • 1 DN-SE Stand for T210/T245/T470-NA
  • 1 C245903 Cartridge Conical Ø 1 S1
  • 1 CL8499 Manual Tip Cleaner
  • 1 B7243 Nozzle N2 Nitrogen Handle
  • 1 B7244 Nozzle N3 for T245-NA Nitrogen Handle

Technical Attributes

N2 Pressure Range Supply 3-5 bar
Maximum Pressure 6 bar
N2 Flow Regulation 0.5 - 3.5 SLPM (at 5 bar)
Recommended N2 Flow 1-2 SLPM

ESD/EOS

ESD Safe
Write Your Own Review
You're reviewing:JBC KN-A Nitrogen Kit for DI
Your Rating
£755.00 (£906.00 inc VAT)
JBC KN-A (A.K.A KN) Nitrogen Kit for DI (A.K.A. DIU)
