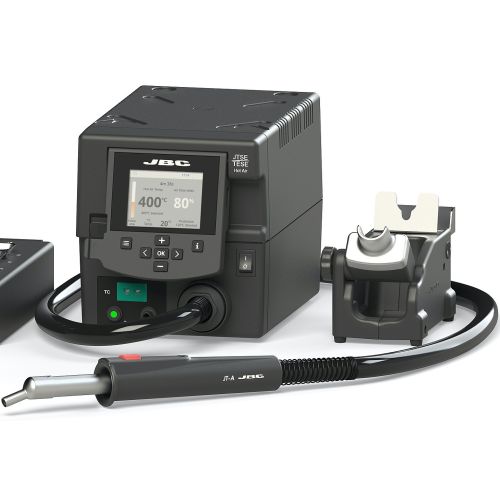

JBC JTSE-2QB Hot Air Station (NO ACCESSORIES)
The JTSE is a high powered hot air station capable of reworking all types of SMDs.Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB. As with all the JBC Stations, the JTSE-Q has a menu with more than 10 parameters to customise the control unit. This comes without the accessories which is the extractor desk.
Qualities and Characteristics
- High powered hot air Station
- External thermocouple
- Menu with more than 10 parameters
Product Contains
- 1 JTSE-2QA Hot Air Control Unit
- 1 JT Heater Hose Sets
- 1 JN2015 Nozzle for JT heater
- 1 JN2012 Nozzle for JT heater
- 1 JN2020 Nozzle for JT heater
- 1 JT-SE Stand for JT heater
- 1 PH218 Thermocouple Type K
Technical Attributes
| Vacuum | 30% / 228 mmHg / 9 inHg |
| Temperature Profiles | Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored. |
Selectable Parameters
| Selectable Temperature | 150 to 450 ºC / 300 to 840 ºF |
| Operating Modes | Heating / Profiles / Cooling |
| Air Flow Regulation | 5 to 50 SLPM |
ESD/EOS
| ESD | Safe |
Power Supply
| Peak Power | 700 W |
| Ambient operating temp. | 10 - 50 ºC / 50 - 120 ºF |
Connectivity
| USB-B | Rear:Software PC |
| USB-A | Front:Firmware update,Graphics / Profiles management |
| Equipotential Bonding | Optional connection to EPA |
| Robot | RS-232 remote control |
| Type K Thermocouple | Can be used both for Control and Protection purposes. |
| Pedal | Optional tool control |
Write Your Own Review

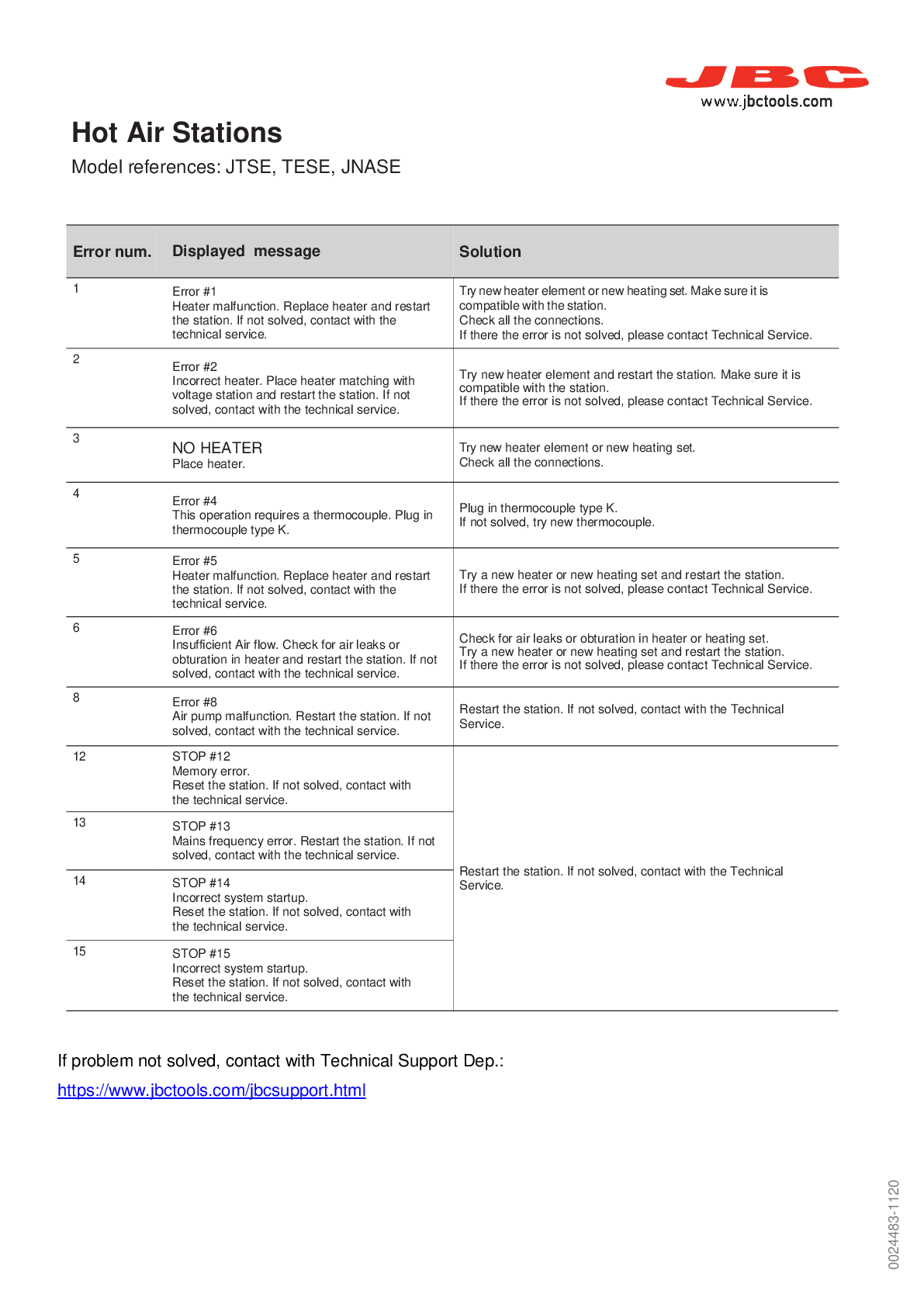

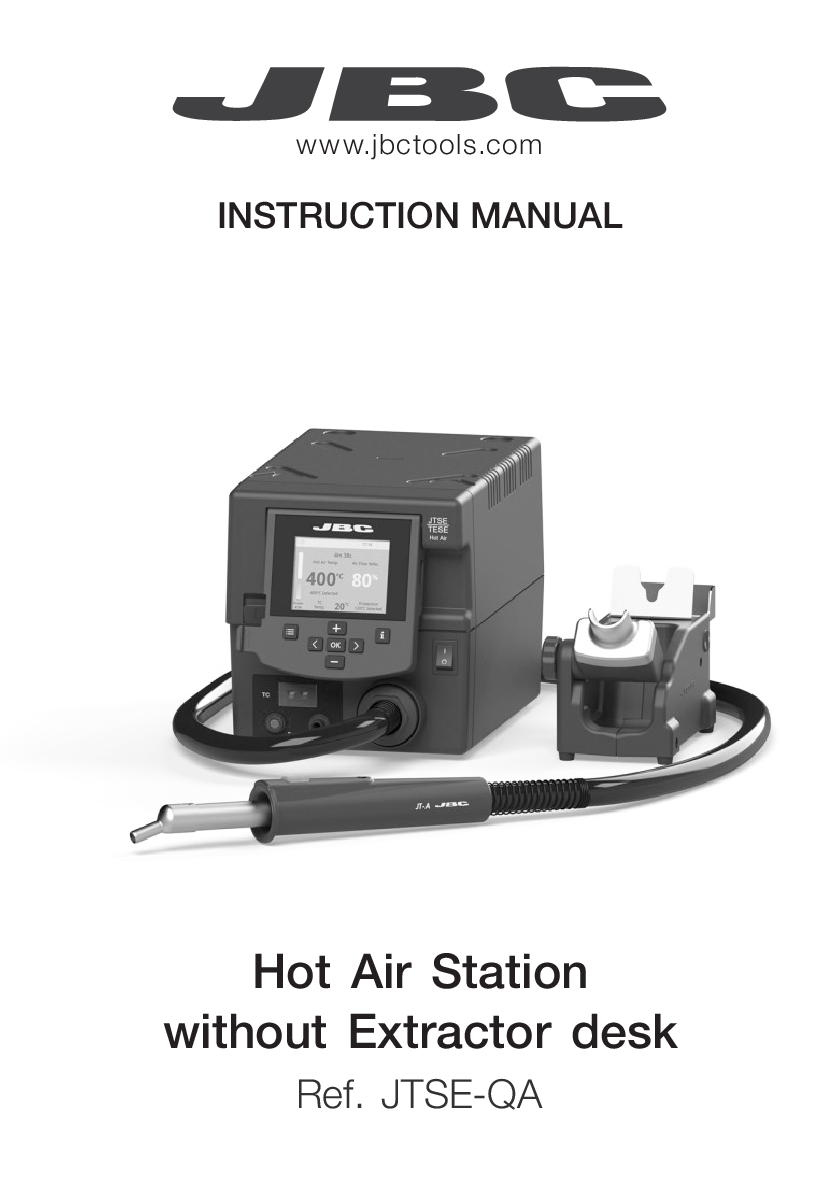

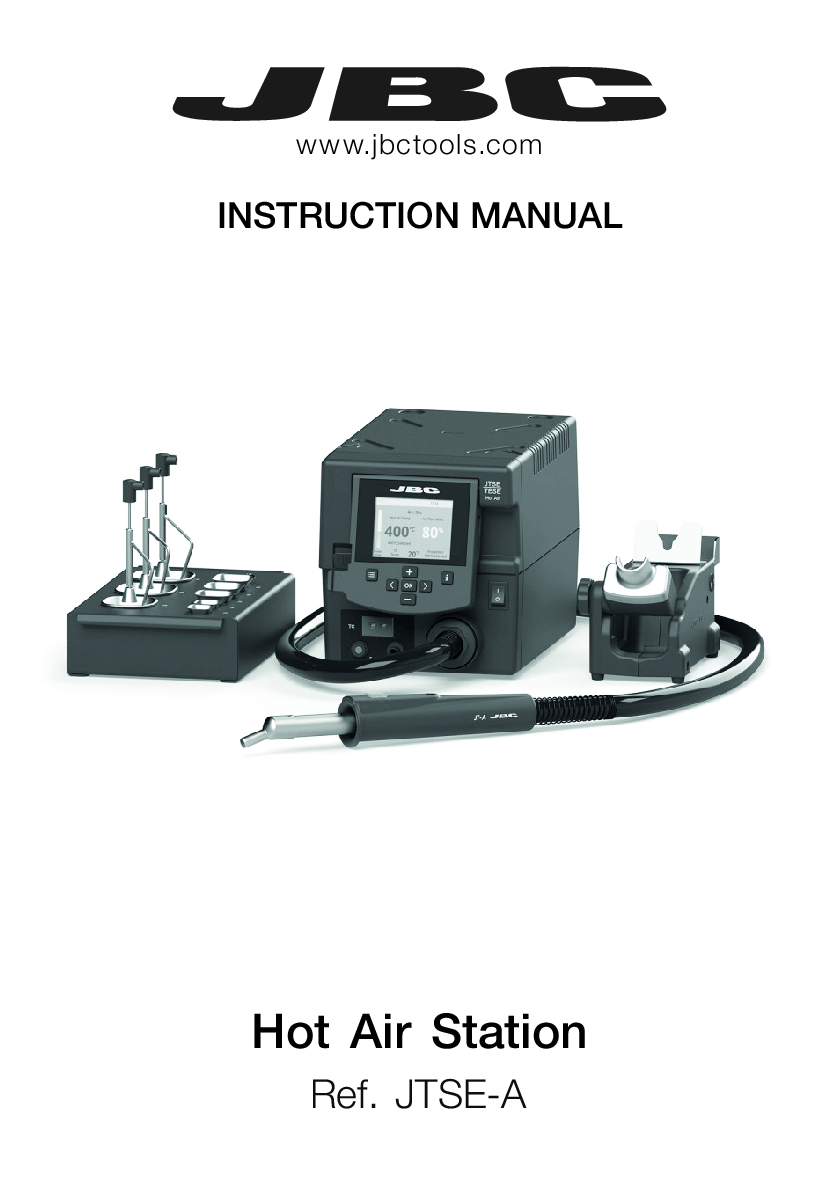

Technical resources
£1,735.00
(£2,082.00
inc VAT)
JBC JTSE (A.K.A JT) Hot Air Station (NO ACCESSORIES)
