The HDE station is the most powerful soldering unit of the JBC range. Now its new power supply (SMPS) ensures high efficiency and increased performance on soldering applications that require large amount of heat.A Heavy Duty Tweezers Set KHT470A is also available providing twice the power of the T470 Handle (it requires 2 HDE-U Control Units).

Qualities and Characteristics

  • Most powerful soldering unit of the JBC range
  • JBC Most Efficient Soldering System
  • Intelligent Sleep & Hibernation modes
  • Compatible with the T470 Handle and C470 Cartridges.
  • 10 different languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean and Chinese
  • ESD Safe

Product Contains

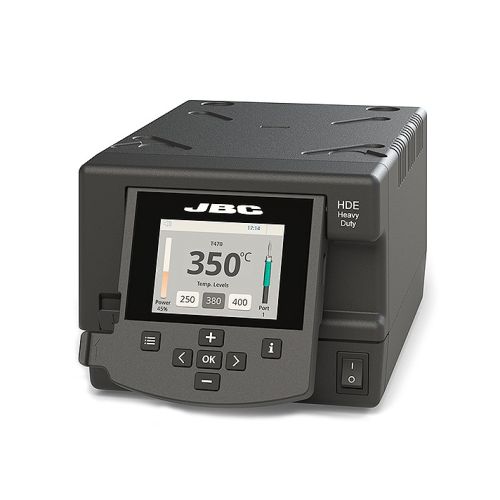

  • 1 HDE-U Heavy Duty Control Unit

Selectable Parameters

Selectable Temperature 90 to 500 ºC / 190 to 930 ºF
Dynamic Soldering Profiles Designed to avoid thermal shock.Up to 25 fully configurable soldering profiles can be stored.

Special Features

Sleep and Hibernation Mode These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature Limit the temperature range in which the operator is allowed to work.
Temperature Levels Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering Graphics Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection Keep station parameters protected against unauthorized access.
10 User Interface Languages English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.


ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power 250 W - 42V
Ambient operating temp. 10 to 40 ºC / 50 to 104 ºF


USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics management
Robot RS-232 remote control or Smart Fume Extractor connection
