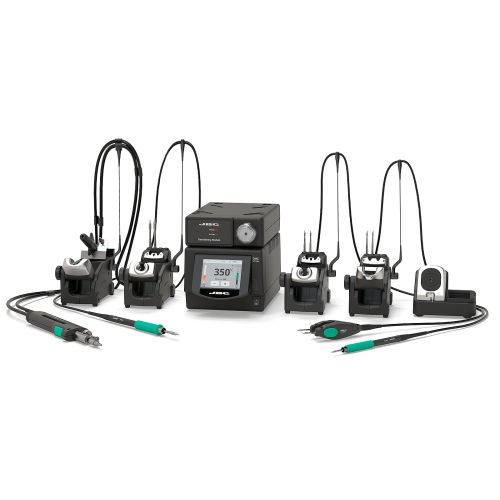

The DME manages up to 4 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools. The MSE Electric Desoldering Module is indispensable for a complete desoldering process. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend the life of tips. It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management. Although the Control Unit is compatible with 10 different JBC tools, the DMPVE works simultaneously with the T210 Precision Purpose Handle, the T245 General Purpose Handle, the AM120 Micro Tweezers and the DR560 Desoldering Iron.


Qualities and Characteristics

  • JBC Most Efficient Soldering System
  • Sleep and Hibernation mode
  • Customization
  • Compatible with 10 different JBC tools
  • The DMPVE works simultaneously with the T210 Precision Purpose Handle, the T245 General Purpose Handle, the AM120 Micro Tweezers and the DR560 Desoldering Iron.
  • ESD Safe

Product Contains

  • 1 DMPSE-2QA 230V 4 Tools Control Unit
  • 1 MSE-A Electric Desoldering Module for DDE & DME
  • 1 AM120-A Adjustable Micro Tweezers (cartridge not included)
  • 1 T210-A Precision Purpose Handle (cartridge not included)
  • 1 T245-A General Purpose Handle (cartridge not included)
  • 1 DR560-A Desoldering Iron
  • 2 AD-SE Stand for T210 & T245 Handles
  • 1 AM-SA Stand for AM120 & PA120 Micro Tweezers
  • 1 DR-SE Stand for DR560
  • 1 SCH-A Cartridge Holder
  • 1 CL8499 Manual Tip Cleaner
  • 1 P-405 Pedal

Technical Attributes

Vacuum 75% / 570 mmHg / 22.4 inHg (at 6 bar)
Flow Rate 9 SLPM (at 6 bar)

Selectable Parameters

Selectable Temperature 180 to 450 ºC / 360 to 840 ºF

ESD/EOS

ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power 160 W per tool - 23.5 V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics / Profiles Management / Dino-Lite USB microscope connection. Compatible models: AM2011 and AM2111.
Equipotential Bonding Optional connection to EPA
Robot RS-232 remote control or Smart Fume Extractor connection
LAN Remote control / Traceability
Write Your Own Review
You're reviewing:JBC DMPSE-2QA 4 Tool DME Rework Station with Electric Pump
Your Rating
£2,038.00 (£2,445.60 inc VAT)
