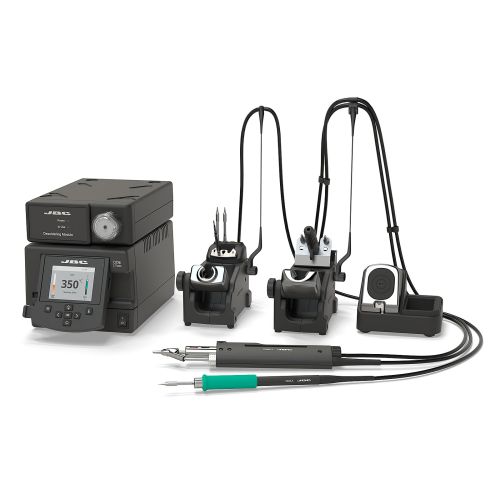

The DDSE station is a complete solution to rework circuits with T245 General Purpose Handle and DR560 Desoldering Iron. The DDE Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools. The MSE Electric Desoldering Module generates the vacuum needed to remove the molten solder from plated through holes and surface mount pads with the DR560. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend the life of tips. It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management. With the practical Cartridge Holder SCH-A the different cartridges are always stored nearby.


Qualities and Characteristics

  • DDE Control Unit manages up to 2 tools simultaneously
  • Complete rework solution
  • DDE Control Unit fully compatible with 10 different JBC tool
  • Comes with T210 Precision Purpose Handle and the DR560 Desoldering Iron
  • JBC Most Efficient Soldering System
  • Sleep & Hibernation modes help to extend life of tips.
  • Station customization, full control of soldering processes and remote work management.
  • The Cartridge Holder SCH-A allow the different cartridges are always stored nearby (Cartridges not included)
  • ESD Safe

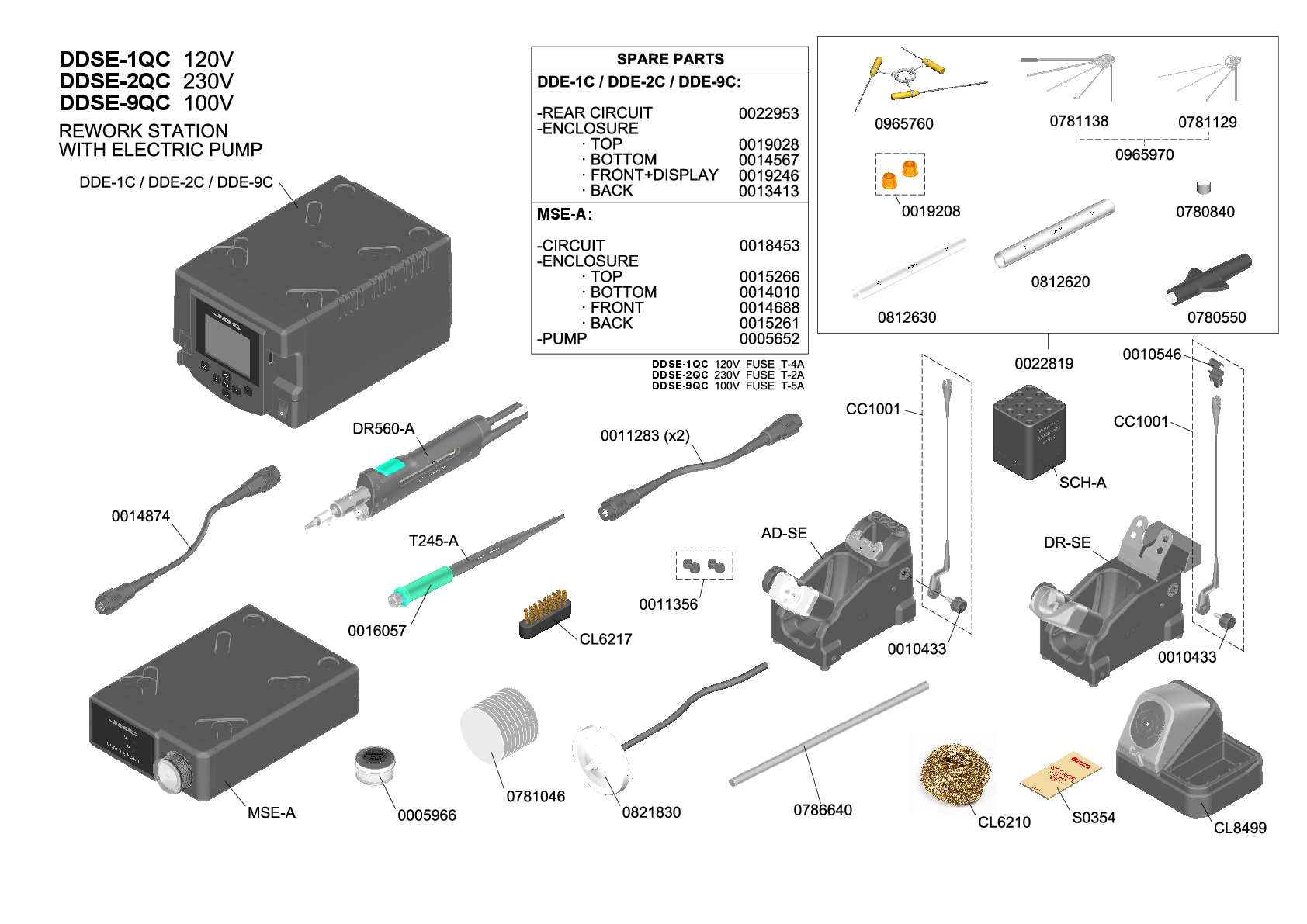

Product Contains

  • 1 DDE 230V 2 Tools Control Unit
  • 1 MSE-A Electric Desoldering Module for DDE & DME
  • 1 T245-A General Purpose Handle (cartridge not included)
  • 1 DR560-A Desoldering Iron
  • 1 AD-SE Stand for T210 & T245 Handles
  • 1 DR-SE Stand for DR560
  • 1 SCH-A Cartridge Holder
  • 1 CL8499 Manual Tip Cleaner

Technical Attributes

Vacuum 75% / 570 mmHg / 22.4 inHg
Flow Rate 9 SLPM
Idle temp. stability (still air) ±1.5ºC (±3ºF): Meets and exceed IPC J-STD-001F
Temperature Accuracy ±3% (using reference cartridge)

Selectable Parameters

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
Temperature Adjustment ±50ºC (±90ºF) Through station menu setting

ESD/EOS

ESD Safe
Tip to ground resistance Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power 150 W per tool - 23.5V
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics management
