JBC CA-2QF Solder Feed Station
The perfect station for applications requiring a free hand to solder wire, connectors, transformers or THT components.
It uses AP250 Solder Feed Iron, a great tool for repetitive tasks which ensures easy control of the amount of tin dispensed. AP250 works with C250 Cartridge Range.
Qualtites and Charaterisitcs
- Fast and easy configuration of the station thanks to the 7-key keypad.
- Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
- Connectivity to JBC Fume Extractor (connector RJ12).
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the Sleep & Hibernation Modes help to extend the life of tips.
Product Contains
- 1 Control Unit
- 1 AP250 Solder Feed Iron (cartridge not included)
General Attributes
| Model | CA-2QF |
Physical Attributes
| External dimensions (mm) | 170 x 176 x 145 mm |
Selectable Parameters
| Selectable Temperature | 90 to 450 ºC / 190 to 840 ºF |
| Temperature Measurement | ±3% ( using reference cartridge) |
| Temperature Adjustment | ±50ºC /±90ºF Through station menu setting |
Solder Compatibility
| Wire Diameter | from 0.8 - 1 mm / 0.03 - 0.04 in from 1.1 - 1.5 mm / 0.04 - 0.06 in |
Power Supply
| Peak Power | 130 W - 23.5 V |
| Ambient operating temp. | 10 to 50 ºC / 50 to 122 ºF |
Write Your Own Review
£623.00
(£747.60
inc VAT)

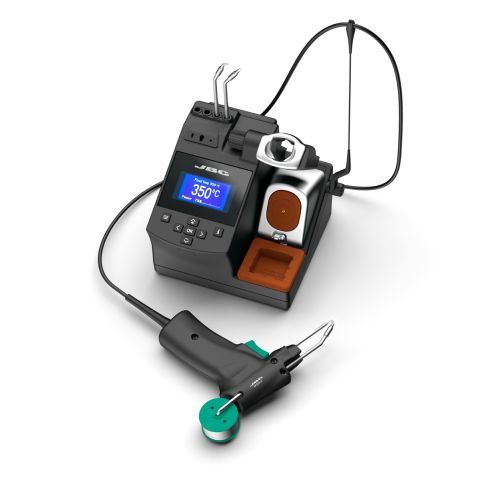

JBC CDA Solder Feed Station
