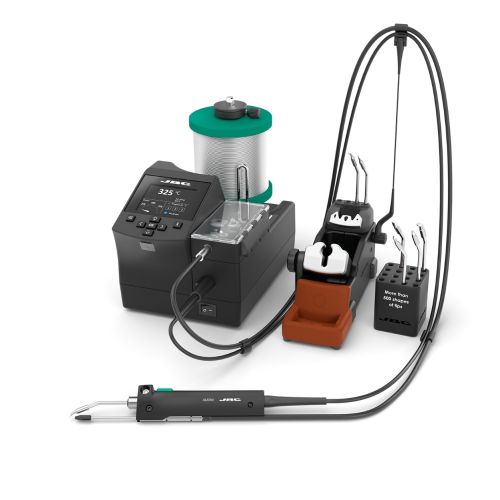

The ALE Auto-Feed Soldering Station is ideal solution for soldering processes requiring a free hand. It works with the comfortable ALE250 Auto-Feed Iron and C250 Cartridge Range.

You can easily configure parameters such as dispensed wire speed and length thanks to its newly upgraded 7-key keypad. You can also monitor the solder consumption thanks to integrated counters.

3 working modes:
In Continuous Mode solder wire is fed while the button keeps pressed. Discontinuous Mode allows the configuration of the speed and the solder wire amount that will be fed on each click. Program Mode enables the operator to configurate 3 consecutive feeding steps, obtaining a more dynamic and efficient soldering. Up to 5 programs can be set.

Solder Wire Perforation:
The solder feeder features a small blade that perforates the solder wire down to the flux core while feeding it. This perforation process allows better flux flow and outgassing, avoiding solder and flux splashing when soldering.

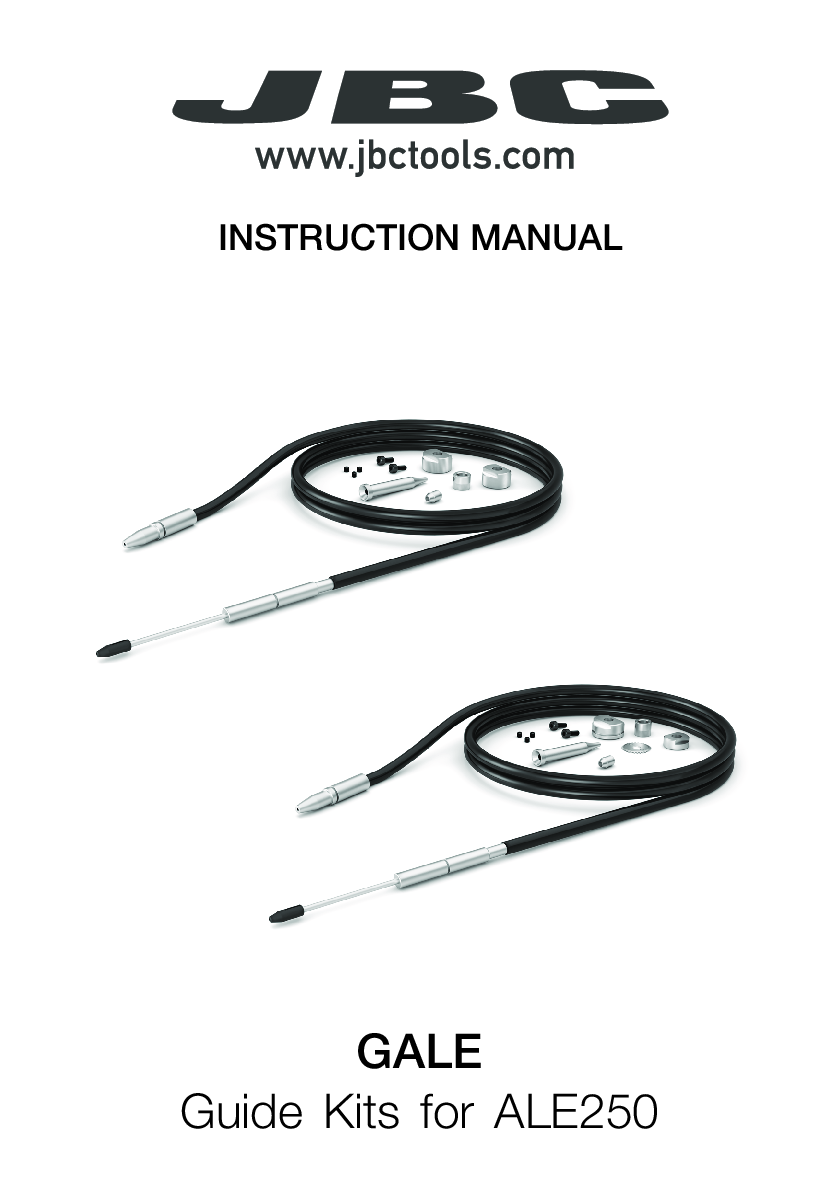

The included GALE10V Guide Kit makes this station compatible with Ø 1.0 mm / 0.04 in single-core solder wire. If you require a different guide-kit size, please contact us.

Furthermore, this station allows a solder reel up to 2 kg / 4.40 lb (DIN 100).


Qualities and Characteristics

  • 3 working modes
  • Solder Wire Perforation
  • Included GALE10V Guide Kit makes this station compatible with Ø 1.0 mm / 0.04 in single-core solder wire. If you require a different guide-kit size, please contact us.
  • Station allows a solder reel up to 2 kg / 4.40 lb (DIN 100).

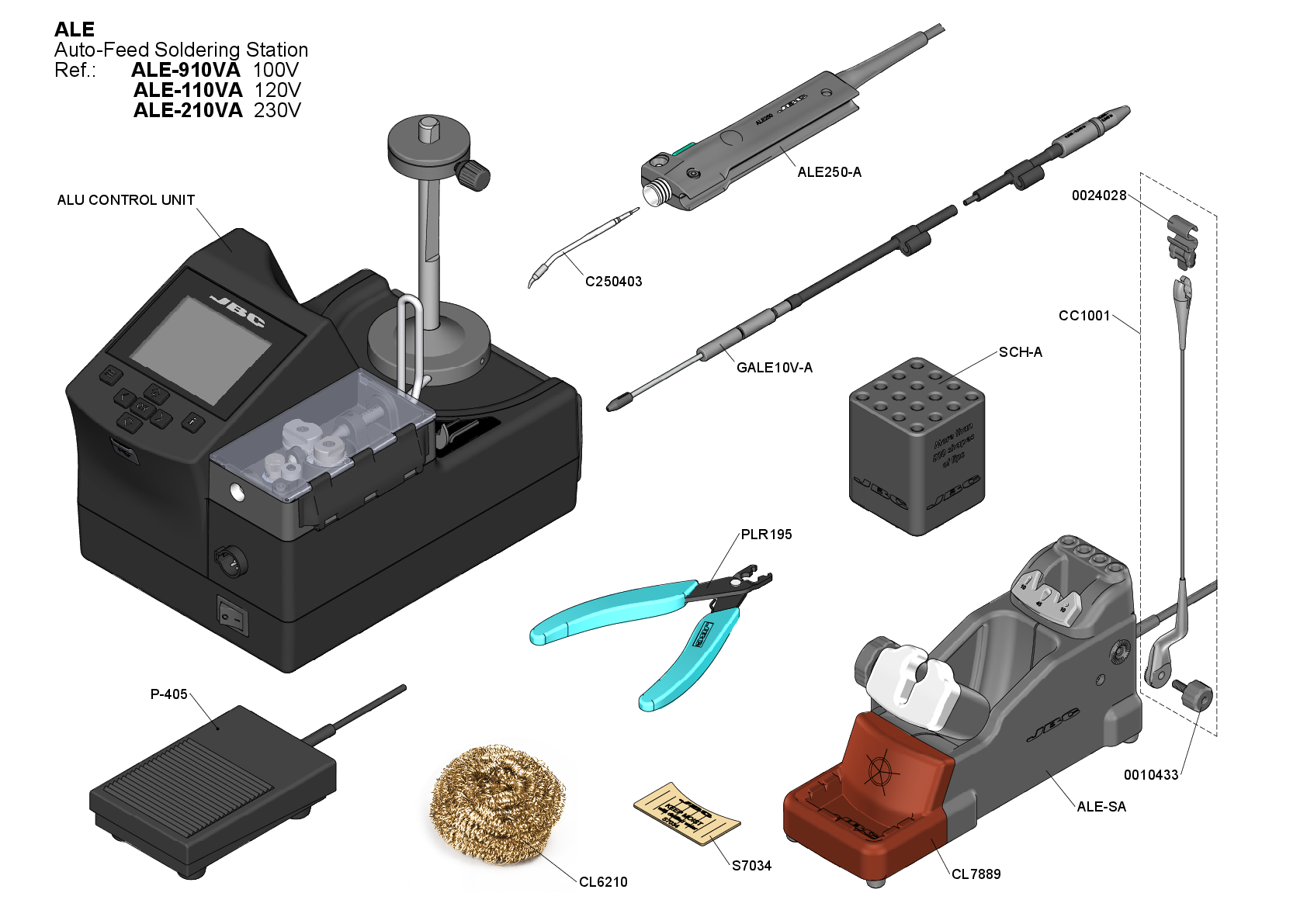

Product Contains

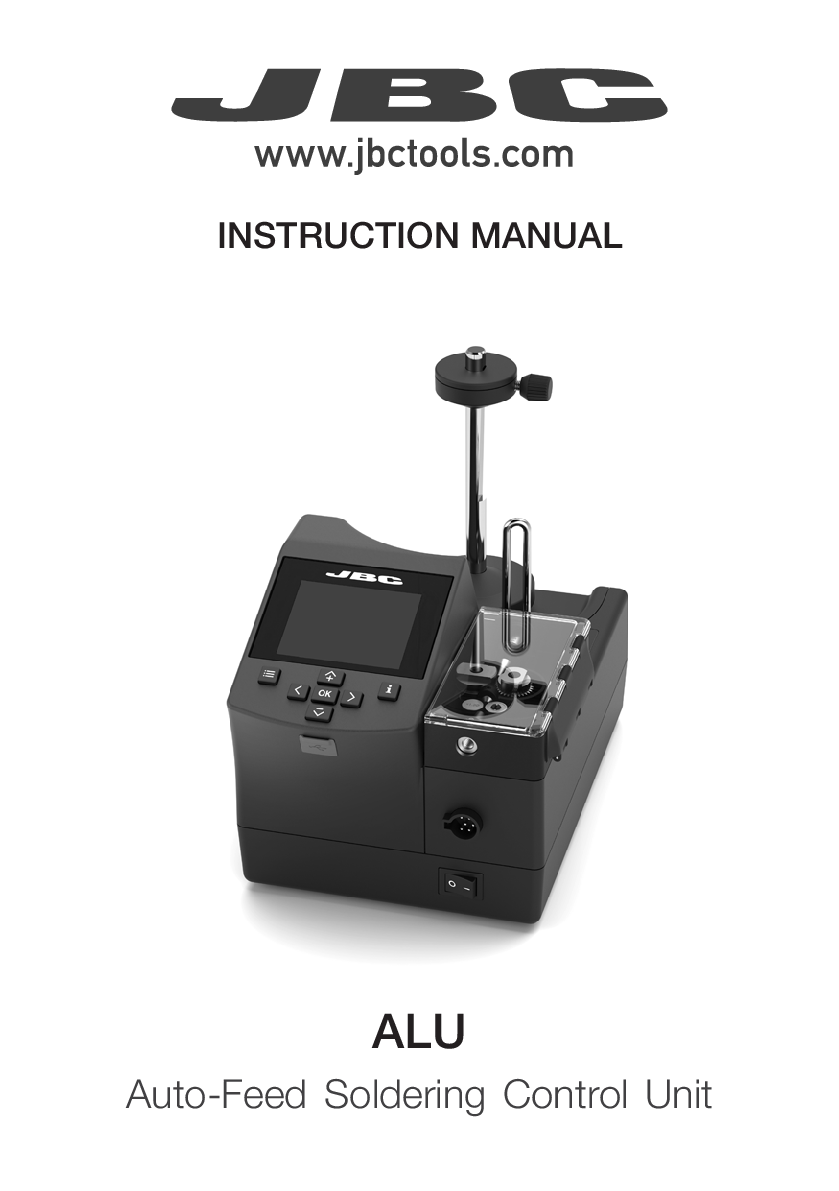

  • 1 ALU Auto-Feed Control Unit

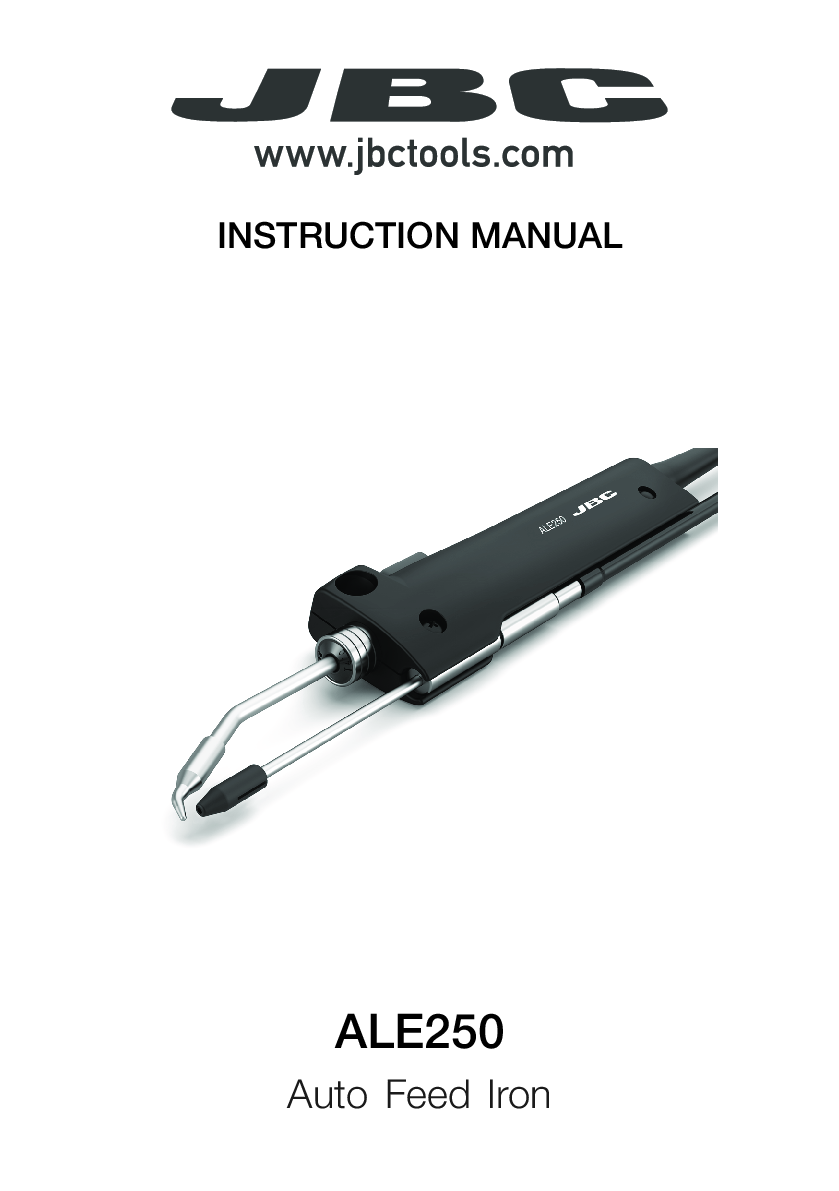

  • 1 ALE250 Auto-Feed Iron (cartridge and guide not included)

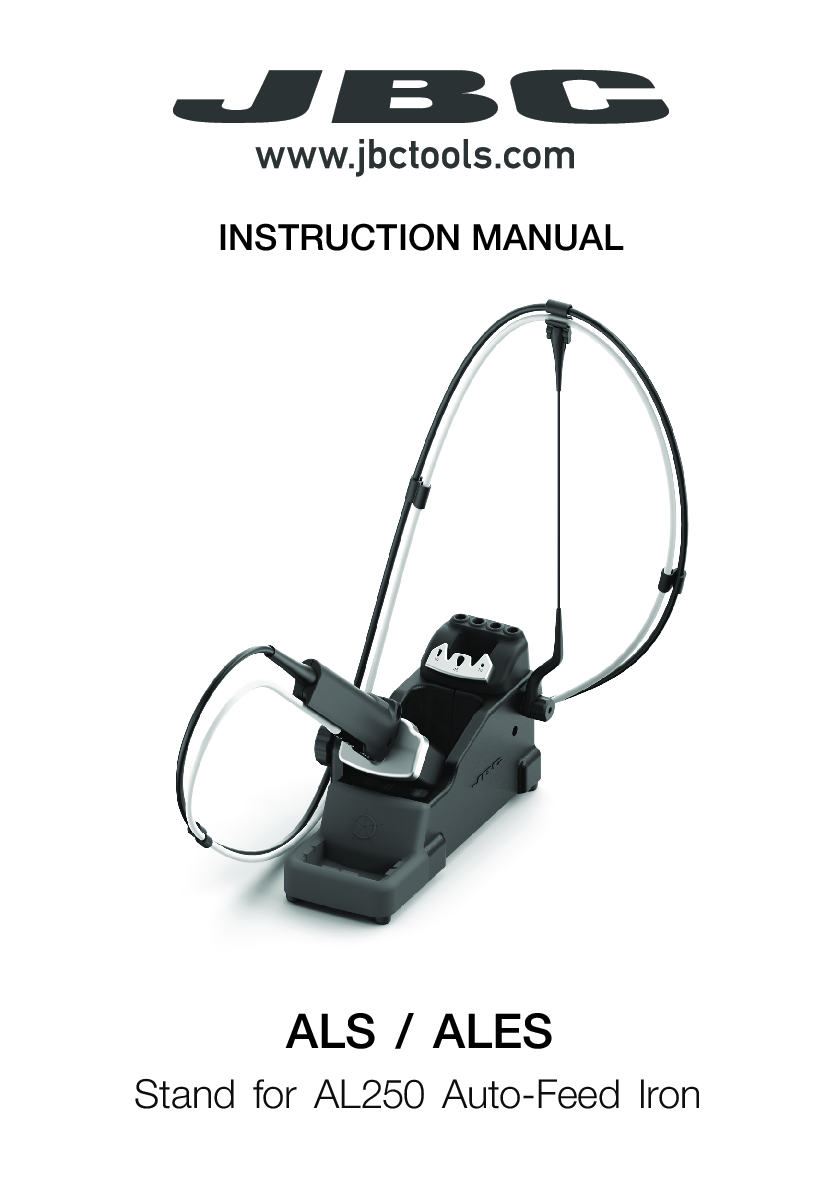

  • 1 ALES Stand for ALE250 Auto-Feed Iron
  • 1 C250403 Conical Bent Cartridge Ø 1
  • 1 GALE10V Guide Tube Ø1.0 mm for ALE
  • 1 SCH Cartridge Holder

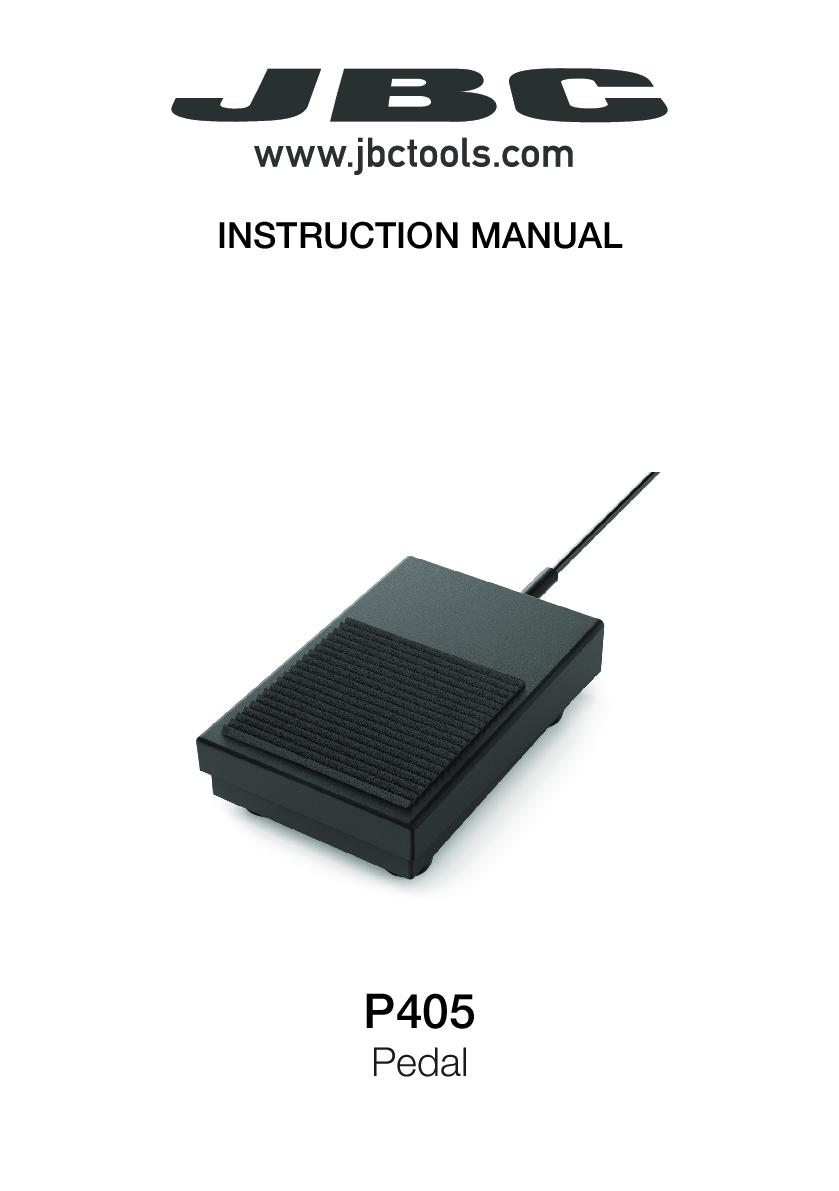

  • 1 P405 Pedal
  • 1 PLR195 Cartridge Extractor Plier

General Attributes

Model ALE-210VA

Selectable Parameters

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
Solder Wire Speed 30 mm/s / 1.18 in/s
Operating Modes Continuous/Discontinuous

Solder Compatibility

Wire Diameter 0.4 - 1.8 mm / 0.02 - 0.07 in

Special Features

Sleep and Hibernation Mode These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max/Min temperature and solder wire speed Limits the ranges of temperature, solder wire feeding length and speed in which the operator is allowed to work.
PIN protection Keep station parameters protected against unauthorized access.

ESD/EOS

ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power 130 W
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF
