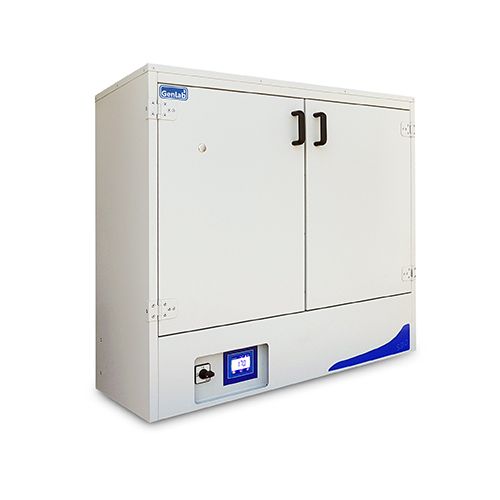

Genlab SDO/225 210 Litre Soils Drying Oven

The SDO range of ovens is designed for drying large quantities of soils and aggregate samples and maintains the temperature in accordance with BS EN and ASTM requirements. They feature our latest touch screen control system, which offers intuitive control and excellent accuracies designed for soil drying ovens. The SDO225 and 425 models are also available with a 3 digit PID controller for lower-cost options.

• 225 litres
• Temperature range: 40ºC to 180ºC (225 and 425 models
• Digital Control System
• Fan assisted circulation
• Excellent Stability (<1ºC)
• Low temperature uniformity

• Access ports (25, 50, 75 or 100mm)
• Traceable calibrations to national standards
• Extended warranty
• Reinforced shelves (up to 40Kg)
• Integral Data Logger with reporting firmware (TDIG Only)

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD). Fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Heated by Incoloy sheathed elements positioned in the either the base or side of the unit. Fresh air is entered into the  oven and passed across the heating element and into the chamber. Air is then continuously circulated around the chamber with around 15% expelled through the top vent which is replaced with the incoming air.

The control system comprises of a bespoke touch screen user interface that offers both accurate temperature control and an integral overheat system by using 2 individual PT100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.
